Item Material L Finish KS-V-1000 Q235,∮48.3*2.75~3.5 1000mm Powder Coated KS-V-1500 Q235,∮48.3*2.75~3.5 1500mm Powder Coated KS-V-2000 Q235,∮48.3*2.75~3.5 2000mm Powder Coated KS-V-2500 Q235,∮48.3*2.75~3.5 2500mm Powder Coated KS-V-3000 Q235,∮48.3*2.75~3.5 3000mm Powder Coated hundreds of colour can be chosen in pantone for powder coated finish dimension,surface,material and style can be specified 1)Kwikstage types of scaffolding system is quick to erect and strip. 2)All components are securely joint by high tensile steel V and C pressing parts. 3)High stability in suspended structure or on uneven ground. 4)Maximum time saving, labour saving and material saving. 5)Kwikstage type scaffolding have different functions using with different accessories. 6)Kwikstage types of scaffolding is widely used for massive concrete construction or high-rise tower staircase in Australia, Africa and China.

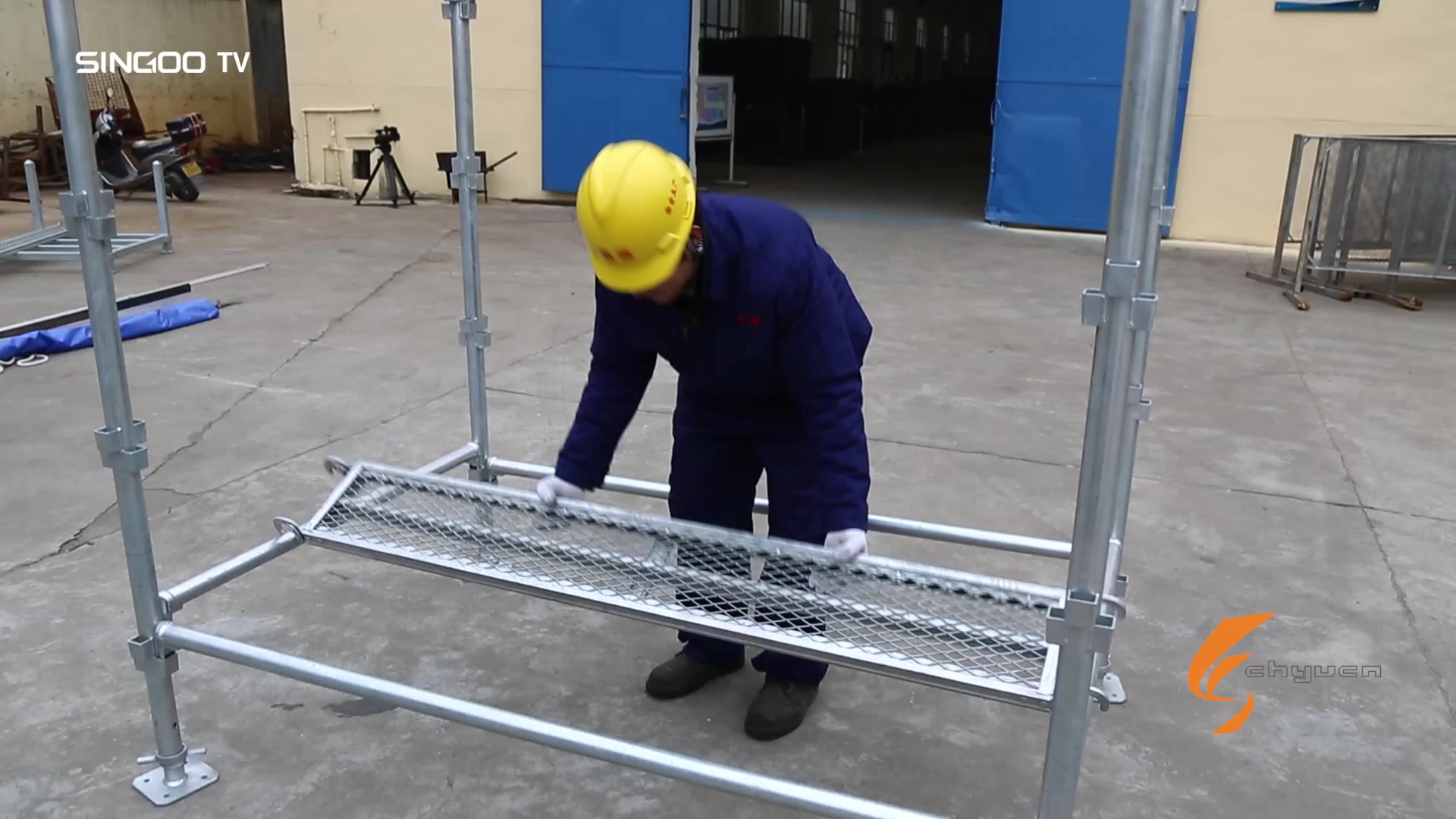

Item Description Material L Finish CBRKT1 Cuplock Board Brakcet 1'-3-3/4" Q235 1'-3-3/4" Hot-Dip Galvanized CBRKT2 Cuplock Board Brakcet 1'-10-1/4" Q235 1'-10-1/4" Hot-Dip Galvanized CBRKT3 Cuplock Board Brakcet 2'-7-5/16" Q235 2'-7-5/16" Hot-Dip Galvanized dimension,surface,material and style can be specified 1)Cuplock scaffolds have less basic structures, are easy be installed and discharged. 2)Cuplock scaffolding system suits all sorts of buidling structures. 3)Cuplock systems reduces time limit for proiects with less freight. 4)Surface Finish:Hot Dip Galvanized；Electro Galvanized;Spray painting.Dimension,material and style also can be specified .

ITEM DESCRIPTION SPECICATION Finish MBB-4 MONO BOARD BRACKET Φ42.7×400mm Hot-Dip Galvanized MBB-6 MONO BOARD BRACKET Φ42.7×600mm Hot-Dip Galvanized dimension,surface,material and style can be specified

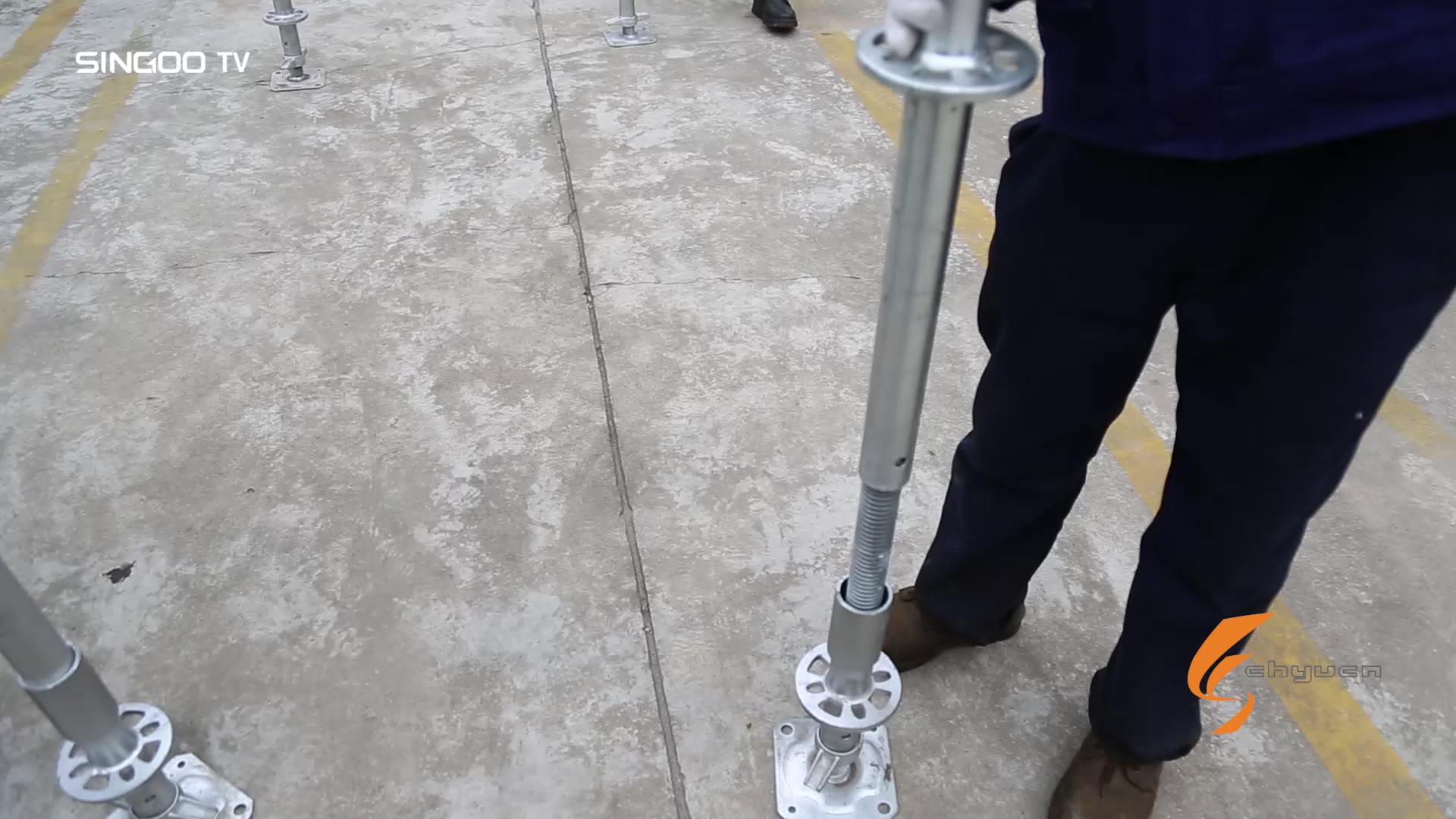

Item Description Finish RBC-L Long Base Collar Hot-Dip Galvanized RBC-S Short Base Collar Hot-Dip Galvanized dimension,surface,material and style can be specified 1)Ringlock scaffolds have less basic structures, are easy be installed and  and  discharged. 2)Ringlock scaffolding system suits all sorts of buidling structures. 3)Ringlock systems reduces time limit for proiects with less freight. 4)Surface Finish:Hot Dip Galvanized；Electro Galvanized;Spray painting.Dimension,material and style also can be specified

Specifications and Sizes: Aluminum skin thickness: 0.12mm-0.50mm Total panel thickness: 2mm-6mm Width:1000mm,1220mm(regular),1250mm,1300mm,1500mm,1550mm, 1575mm(maximum) Length: Up to 6500mm Standard size: 1220mm(Width) ×2440mm(Length) Non-standard sizes and special colors are available depending on customers’ offers Available Colors: We can produce all colors on all professional color cards Feature: High Mechanical Strength and Toughness/ Anti-fungus/ Both Rigid and Flexible/ Low and High Temperature Resistance/ Super Peel Strength/Superior Weathering Resistance/ Light Weight and Easy for Process/ Excellent Fire- Resistance Property/ Coating Evenness & Diversified Colors/ Easy for Maintenance/ Impact Resistance/ Quickly installed/ Excellent self-cleaning character Production Capability: 250000SQM/Month More Service: OEM, Samples free (samples will be sent in one day time) Details： Warranty: We offer 20 years guarantee for PVDF Coating ACP Surface Treatment: PVDF coating Aluminum Source: South West Aluminum Factory Painting Source: PPG&BECKER Payment Term: TT, LC at sight, D/P, Western Union, Paypal Certification： Greenbond has a complete strict quality assurance system, as well as successfully passed ISO 9001 and ISO 2001 certifications. Packing & Delivery Greenbond China muestra gratis panel compuesto de aluminio Packing Details : packed in bulks or wooden box,suitable for shipping container Delivery Details : It need about 25 days after receiving your deposit

Material: A) Front : aluminium alloy sheet coated fluoro-carbon resin (PVDF) with Nano lacquer B) Core: nontox low density polyethylene C) Back: aluminium alloy sheet coated with polyester resin painting D) Surface coating thickness: 32μ±1μ E) Aluminium alloy: 3003 H24 F) Sheet thickness: 0.3mm,0.4mm,0.5mm Specifications and Sizes: Aluminum skin thickness: 0.12mm-0.50mm Total panel thickness: 2mm-6mm Width:1000mm,1220mm(regular),1250mm,1300mm,1500mm,1550mm, 1575mm(maximum) Length:Up to 6500mm Standard size:1220mm(Width) ×2440mm(Length) Surface Treatment:PVDF coating and PE coating Main aluminum composite wall panel Product:PE coated ACP,PVDF coated ACP,Nano PVDF coated ACP,Mirror finish ACP,Brushed ACP,Wooden ACP,Granite ACP and Fireproof core ACP Non-standard sizes and special colors are available depending on customers’ offers Available Colors: We can produce all colors on all professional color cards Details： Aluminum Source:South West Aluminum Factory Painting Source:PPG&BECKER PE core Material:Non-toxicand low-density Polyethylene Payment Term:TT, LC at sight,D/P,Western Union,Paypal Production Capability:250000SQM/Month More Service:OEM, Samples free(samples will be sent in one day time ) Feature:Super peeling strength/ Good temperature adaptability/ Excellent performance of fireproof/ Weather proof/ Quickly installed/ Excellent self-cleaning character Applications: A. Building exterior curtain walls B. Decoration and renovation additions for old buildings C. Decoration of interior walls, ceilings, bathrooms, kitchens and balconies D. Shop door decorations E. Advertisement board display platforms and signboards F. Wallboard and ceilings for tunnels Assurance: 1. Goods Inspection: We have professional inspection team to Cooperate with the SGS Laboratory assigned by customer to do the goods inspection. 2. Quality Assurance: We keep the production samples as well as the corresponding test data for customer’s inspection in the future. 3. Goods Return Service: We provide free replacement for goods incompliance with committed quality. 4. Response time: We promise respond to customer goods incompliance report as soon as possible within 24 working hours. Certification： Greenbond has a complete strict quality assurance system, as well as successfully passed ISO 9001 and ISO 2001 certifications. Packing & Delivery Packing Details : packed in bulks or wooden box,suitable for shipping container Delivery Details : It need about 25 days after receiving your deposit

Specifications and Sizes: Product name Brushed Coating Aluminum Composite Panel Aluminum Alloy AA1100, AA3003, AA5005 Al sheet thickness From 0.25mm*0.25mm to 0.5mm*0.5mm Panel thickness From 3mm to 6mm Panel width 1000mm & 1220mm & 1250mm & 1500mm & 1575mm Panel length Upon customs' request Color Upon customs' request Service OEM and ODM are available Specifications and Sizes: Aluminum skin thickness: 0.12mm-0.50mm Total panel thickness: 2mm-6mm Width:1000mm,1220mm(regular),1250mm,1300mm,1500mm,1550mm, 1575mm(maximum) Length:Up to 6500mm Standard size:1220mm(Width) ×2440mm(Length) Surface Treatment:PVDF coating and PE coating Main aluminum composite wall panel Product:PE coated ACP,PVDF coated ACP,Nano PVDF coated ACP,Mirror finish ACP,Brushed ACP,Wooden ACP,Granite ACP and Fireproof core ACP Non-standard sizes and special colors are available depending on customers’ offers Available Colors: We can produce all colors on all professional color cards Details： Aluminum Source:South West Aluminum Factory Painting Source:PPG&BECKER PE core Material:Non-toxicand low-density Polyethylene Payment Term:TT, LC at sight,D/P,Western Union,Paypal Production Capability:250000SQM/Month More Service:OEM, Samples free(samples will be sent in one day time ) Feature:Super peeling strength/ Good temperature adaptability/ Excellent performance of fireproof/ Weather proof/ Quickly installed/ Excellent self-cleaning character Applications: A. Building exterior curtain walls B. Decoration and renovation additions for old buildings C. Decoration of interior walls, ceilings, bathrooms, kitchens and balconies D. Shop door decorations E. Advertisement board display platforms and signboards F. Wallboard and ceilings for tunnels Assurance: 1. Goods Inspection: We have professional inspection team to Cooperate with the SGS Laboratory assigned by customer to do the goods inspection. 2. Quality Assurance: We keep the production samples as well as the corresponding test data for customer’s inspection in the future. 3. Goods Return Service: We provide free replacement for goods incompliance with committed quality. 4. Response time: We promise respond to customer goods incompliance report as soon as possible within 24 working hours. Certification： Greenbond has a complete strict quality assurance system, as well as successfully passed ISO 9001 and ISO 2001 certifications. Packing & Delivery Packing Details : packed in bulks or wooden box,suitable for shipping container Delivery Details : It need about 25 days after receiving your deposit

Specifications and Sizes: Product name Fireproof Coating Aluminum Composite Panel Aluminum Alloy AA1100, AA3003, AA5005 Al sheet thickness From 0.25mm*0.25mm to 0.5mm*0.5mm Panel thickness From 3mm to 6mm Panel width 1000mm & 1220mm & 1250mm & 1500mm & 1575mm Panel length Upon customs' request Color Upon customs' request Service OEM and ODM are available Aluminum Composite Panel Applications: A Building exterior curtain walls B Decoration and renovation additions for old buildings C Decoration of interior walls, ceilings, bathrooms, kitchens and balconies D Shop door decorations E Advertisement board display platforms and signboards F Wallboard and ceilings for tunnels Available Colors: We can produce all colors on all professional color cards Details： Aluminum Source:South West Aluminum Factory Painting Source:PPG&BECKER PE core Material:Non-toxicand low-density Polyethylene Payment Term:TT, LC at sight,D/P,Western Union,Paypal Production Capability:250000SQM/Month More Service:OEM, Samples free(samples will be sent in one day time ) Feature:Super peeling strength/ Good temperature adaptability/ Excellent performance of fireproof/ Weather proof/ Quickly installed/ Excellent self-cleaning character Applications: A. Building exterior curtain walls B. Decoration and renovation additions for old buildings C. Decoration of interior walls, ceilings, bathrooms, kitchens and balconies D. Shop door decorations E. Advertisement board display platforms and signboards F. Wallboard and ceilings for tunnels Assurance: 1. Goods Inspection: We have professional inspection team to Cooperate with the SGS Laboratory assigned by customer to do the goods inspection. 2. Quality Assurance: We keep the production samples as well as the corresponding test data for customer’s inspection in the future. 3. Goods Return Service: We provide free replacement for goods incompliance with committed quality. 4. Response time: We promise respond to customer goods incompliance report as soon as possible within 24 working hours. Certification： Greenbond has a complete strict quality assurance system, as well as successfully passed ISO 9001 and ISO 2001 certifications. Packing & Delivery Packing Details : packed in bulks or wooden box,suitable for shipping container Delivery Details : It need about 25 days after receiving your deposit Test Report on Physical Characteristies of State Thst Center of Building Materials Items Standard Inde Test Value Individual Judgment Density of surfac Rating±0.5kg/m2 6.8kg/m2 Qualified Impact strength 50kg.cmWithout paint off and crack Without paint off and crack Qualified Bend strength ≥ 1OOMPa ≥ 1O4MPa Qualified Flexuous modulus of elasticity ≥2.00 x lO4MPa 3.00 x lO4MPa Qualified Through resistance ≥9.0KN 9.50KN Qualified Cutting strength ≥ 28.OMPa 29.OMPa Qualified 1800peel strength ≥7.0N/mm ≥9.1N/mm Qualified Resistance to change of temperature -400C~-800C20cycles without change Unchanged Qualified Boiling water resistance Unchanged Unchanged Qualified Coefficient of heat expansion ≥4.00 X lO-5 0C-1 2.93 X lO-5 0C-1 Qualified Heat deformation temperature ≥1050C 1120C Qualified The test result meets the index requirements of quality product of GB/T17748-1999 Test Report of Safety of State Quality Supervision & Inspection Center of Fireproof Building Materials Fireproof Aluminum Composite Panel Items Test method Technical index Result Conclusion Minmum value of remaining length after burning GB/T8325-88 > 0 410 Qualified Average value of remaining length after burning GB/T8325-88 ≥ 150 486 Qualified Temperature of smoke GB/T8325-88 ≤ 200 116 Qualified Height of the top of the flame,mm GB/T8326-88 〈 150 15 Qualified Grade of smoke density GB/T8327-88 ≤ 75 34 Qualified Note:The technical index based on the regulation of uninflammable materials(Grade B1)of GB8624-1997.

Specifications and Sizes: Product name Mirror Coating Aluminum Composite Panel Aluminum Alloy AA1100, AA3003, AA5005 Al sheet thickness From 0.25mm*0.25mm to 0.5mm*0.5mm Panel thickness From 3mm to 6mm Panel width 1000mm & 1220mm & 1250mm & 1500mm & 1575mm Standard size 1220 * 2440mm * 4mm Panel length Upon customs' request Color Upon customs' request Service OEM and ODM are available Project show: Greenbond has many clients around the world. Here is the beautiful pictures of project shows. Details： Aluminum Source:South West Aluminum Factory Painting Source:PPG&BECKER PE core Material:Non-toxicand low-density Polyethylene Payment Term:TT, LC at sight,D/P,Western Union,Paypal Production Capability:250000SQM/Month More Service:OEM, Samples free(samples will be sent in one day time ) Feature:Super peeling strength/ Good temperature adaptability/ Excellent performance of fireproof/ Weather proof/ Quickly installed/ Excellent self-cleaning character Applications: A. Building exterior curtain walls B. Decoration and renovation additions for old buildings C. Decoration of interior walls, ceilings, bathrooms, kitchens and balconies D. Shop door decorations E. Advertisement board display platforms and signboards F. Wallboard and ceilings for tunnels Assurance: 1. Goods Inspection: We have professional inspection team to Cooperate with the SGS Laboratory assigned by customer to do the goods inspection. 2. Quality Assurance: We keep the production samples as well as the corresponding test data for customer’s inspection in the future. 3. Goods Return Service: We provide free replacement for goods incompliance with committed quality. 4. Response time: We promise respond to customer goods incompliance report as soon as possible within 24 working hours. Certification： Greenbond has a complete strict quality assurance system, as well as successfully passed ISO 9001 and ISO 2001 certifications. Packing & Delivery Packing Details : packed in bulks or wooden box,suitable for shipping container Delivery Details : It need about 25 days after receiving your deposit Technical data : Available Colors: We can produce all colors on all professional color cards

Specifications and Sizes: Product name Wooden Coating Aluminum Composite Panel Aluminum Alloy AA1100, AA3003, AA5005 Al sheet thickness From 0.25mm*0.25mm to 0.5mm*0.5mm Panel thickness From 3mm to 6mm Panel width 1000mm & 1220mm & 1250mm & 1500mm & 1575mm Panel length Upon customs' request Color Upon customs' request Service OEM and ODM are available Standard size 1220 * 2440mm * 4mm Available Colors: We can produce all colors on all professional color cards. Details： Aluminum Source:South West Aluminum Factory Painting Source:PPG&BECKER PE core Material:Non-toxicand low-density Polyethylene Payment Term:TT, LC at sight,D/P,Western Union,Paypal Production Capability:250000SQM/Month More Service:OEM, Samples free(samples will be sent in one day time ) Feature:Super peeling strength/ Good temperature adaptability/ Excellent performance of fireproof/ Weather proof/ Quickly installed/ Excellent self-cleaning character Applications: A. Building exterior curtain walls B. Decoration and renovation additions for old buildings C. Decoration of interior walls, ceilings, bathrooms, kitchens and balconies D. Shop door decorations E. Advertisement board display platforms and signboards F. Wallboard and ceilings for tunnels Assurance: 1. Goods Inspection: We have professional inspection team to Cooperate with the SGS Laboratory assigned by customer to do the goods inspection. 2. Quality Assurance: We keep the production samples as well as the corresponding test data for customer’s inspection in the future. 3. Goods Return Service: We provide free replacement for goods incompliance with committed quality. 4. Response time: We promise respond to customer goods incompliance report as soon as possible within 24 working hours. Certification： Greenbond has a complete strict quality assurance system, as well as successfully passed ISO 9001 and ISO 2001 certifications. Packing & Delivery Packing Details : packed in bulks or wooden box,suitable for shipping container Delivery Details : It need about 25 days after receiving your deposit.

Specifications and Sizes: Product name High Glossy Coating Aluminum Composite Panel Aluminum Alloy AA1100, AA3003, AA5005 Al sheet thickness From 0.25mm*0.25mm to 0.5mm*0.5mm Panel thickness From 3mm to 6mm Panel width 1000mm & 1220mm & 1250mm & 1500mm & 1575mm Panel length Upon customs' request Color Upon customs' request Service OEM and ODM are available Project show: Greenbond has many clients around the world. Here is the beautiful pictures of project shows. Details： Aluminum Source:South West Aluminum Factory Painting Source:PPG&BECKER PE core Material:Non-toxicand low-density Polyethylene Payment Term:TT, LC at sight,D/P,Western Union,Paypal Production Capability:250000SQM/Month More Service:OEM, Samples free(samples will be sent in one day time ) Feature:Super peeling strength/ Good temperature adaptability/ Excellent performance of fireproof/ Weather proof/ Quickly installed/ Excellent self-cleaning character Applications: A. Building exterior curtain walls B. Decoration and renovation additions for old buildings C. Decoration of interior walls, ceilings, bathrooms, kitchens and balconies D. Shop door decorations E. Advertisement board display platforms and signboards F. Wallboard and ceilings for tunnels Assurance: 1. Goods Inspection: We have professional inspection team to Cooperate with the SGS Laboratory assigned by customer to do the goods inspection. 2. Quality Assurance: We keep the production samples as well as the corresponding test data for customer’s inspection in the future. 3. Goods Return Service: We provide free replacement for goods incompliance with committed quality. 4. Response time: We promise respond to customer goods incompliance report as soon as possible within 24 working hours. Certification： Greenbond has a complete strict quality assurance system, as well as successfully passed ISO 9001 and ISO 2001 certifications. Packing & Delivery Packing Details : packed in bulks or wooden box,suitable for shipping container Delivery Details : It need about 25 days after receiving your deposit

Specifications and Sizes: Product name PE Coating Aluminum Composite Panel Aluminum Alloy AA1100, AA3003, AA5005 Al sheet thickness From 0.25mm*0.25mm to 0.5mm*0.5mm Panel thickness From 3mm to 6mm Panel width 1000mm & 1220mm & 1250mm & 1500mm & 1575mm Panel length Upon customs' request Color Upon customs' request Service OEM and ODM are available Standard ACP size is 1220 * 2440mm * 4mm. Customized size is also available. Greenbond Project show: Greenbond has many clients around the world. Here is the beautiful pictures of project shows. Details： Aluminum Source:South West Aluminum Factory Painting Source:PPG&BECKER PE core Material:Non-toxicand low-density Polyethylene Payment Term:TT, LC at sight,D/P,Western Union,Paypal Production Capability:250000SQM/Month More Service:OEM, Samples free(samples will be sent in one day time ) Feature:Super peeling strength/ Good temperature adaptability/ Excellent performance of fireproof/ Weather proof/ Quickly installed/ Excellent self-cleaning character Applications: A. Building exterior curtain walls B. Decoration and renovation additions for old buildings C. Decoration of interior walls, ceilings, bathrooms, kitchens and balconies D. Shop door decorations E. Advertisement board display platforms and signboards F. Wallboard and ceilings for tunnels Assurance: 1. Goods Inspection: We have professional inspection team to Cooperate with the SGS Laboratory assigned by customer to do the goods inspection. 2. Quality Assurance: We keep the production samples as well as the corresponding test data for customer’s inspection in the future. 3. Goods Return Service: We provide free replacement for goods incompliance with committed quality. 4. Response time: We promise respond to customer goods incompliance report as soon as possible within 24 working hours. Certification： Greenbond has a complete strict quality assurance system, as well as successfully passed ISO 9001 and ISO 2001 certification. Packing & Delivery Packing Details : packed in bulks or wooden box,suitable for shipping container Delivery Details : It need about 25 days after receiving your deposit Available Colors: We can produce all colors on all professional color cards:
