Feature • It contain hydraulic punch driver. • With the help of hydraulic system, making holes by hand become fast and easy. • Die could be OEM. • With round dies MAP10-4, punching capacity can be reached 4” (MAP10-4 Dies sizes: 2 1/2”(Φ76.1mm), 3”(Φ88.9mm) , 3 1/2”(Φ102.8mm) 4”(Φ115.5mm) • Plastic case package for easy carrying and well tool protection. • Hole set include: 1*pump（CP-180）,1*hydraulic ram,2*draw stud, 1*spacer,1*oil pipe,6*dies set. Parameters Model SKP-15 Stainless Steel plate Max thickness 1.6mm Mild steel plate Max thickness3.2mm Output 15 T Oil Capacity 55CC Working Pressure 600bar Ram Stroke 25 mm Weight 6.2kg Included Dies Set: Round Dies 1/2” (Φ21.8mm) , 3/4”(Φ27.6mm),  1”(Φ34.1mm),  1 1/4”(Φ42.7mm),  1 1/2”(Φ48.7mm),   2”(Φ60.2mm) Square Dies 32*32mm Application The knockout punching tools main work for switch board, distribution box and electrical working, State Grid construction, underground cable construction, Building construction etc.

Catalogue Download Feature • Hexagon /round crimping type for swaging or fishing terminals. • Dies could be OEM as per different terminals sizes, like round is welcome too. • C shape head design for convenient operation. • Head could be rotated 180 degree. For flexible operation in confined place. • Fitted with safety valve. When pressure reach to limited max pressure,s afety-value will release pressure automatically, which prevent over pressure. • Standard nine set of dies, include 4 6 10 16 35 50 70 Parameters Model HP-70CW Terminal Type wire rope fishing/swaging terminals Crimping Capacity Steel wire ropes Φ1-8mm Output 5 T Ram Stroke 12 mm Length/Weight 305mm /1.6kg Application Our cable crimper mainly used for electrical working, State Grid construction, underground cable construction, Building construction etc.

Catalogue Download Feature • Precision locator for terminal positions. • 1.2 metric tones pressure with minimal hand effort. • Interchangeable die set. • Crimp MC3* with optional die set. Parameters Model LY-2546B Capacity MC4： 2.5，4，6mm2 Length 215 mm Weight 0.5 kg

Feature • It contain hydraulic punch driver. • With the help of hydraulic system, making holes by hand become fast and easy. • Die could be OEM. • Plastic case package for easy carrying and well tool protection. • Hole set include: 1*pump（CP-180）,1*hydraulic ram,2*draw stud, 1*spacer,1*oil pipe,6*dies set, Parameters Model SKP-8 Stainless Steel plate Max thickness 1.6mm Mild steel plate Max thickness3.2mm Output 8.9 T Oil Capacity 40CC Working Pressure 600bar Ram Stroke 25 mm Weight 5.4kg Included Dies Set: Round dies 1/2” (Φ21.8mm) , 3/4”(Φ27.6mm),  1”(Φ34.1mm),  1 1/4”(Φ42.7mm),  1 1/2”(Φ48.7mm),   2”(Φ60.2mm) Application The knockout punching tools main work for switch board, distribution box and electrical working, State Grid construction, underground cable construction, Building construction etc.

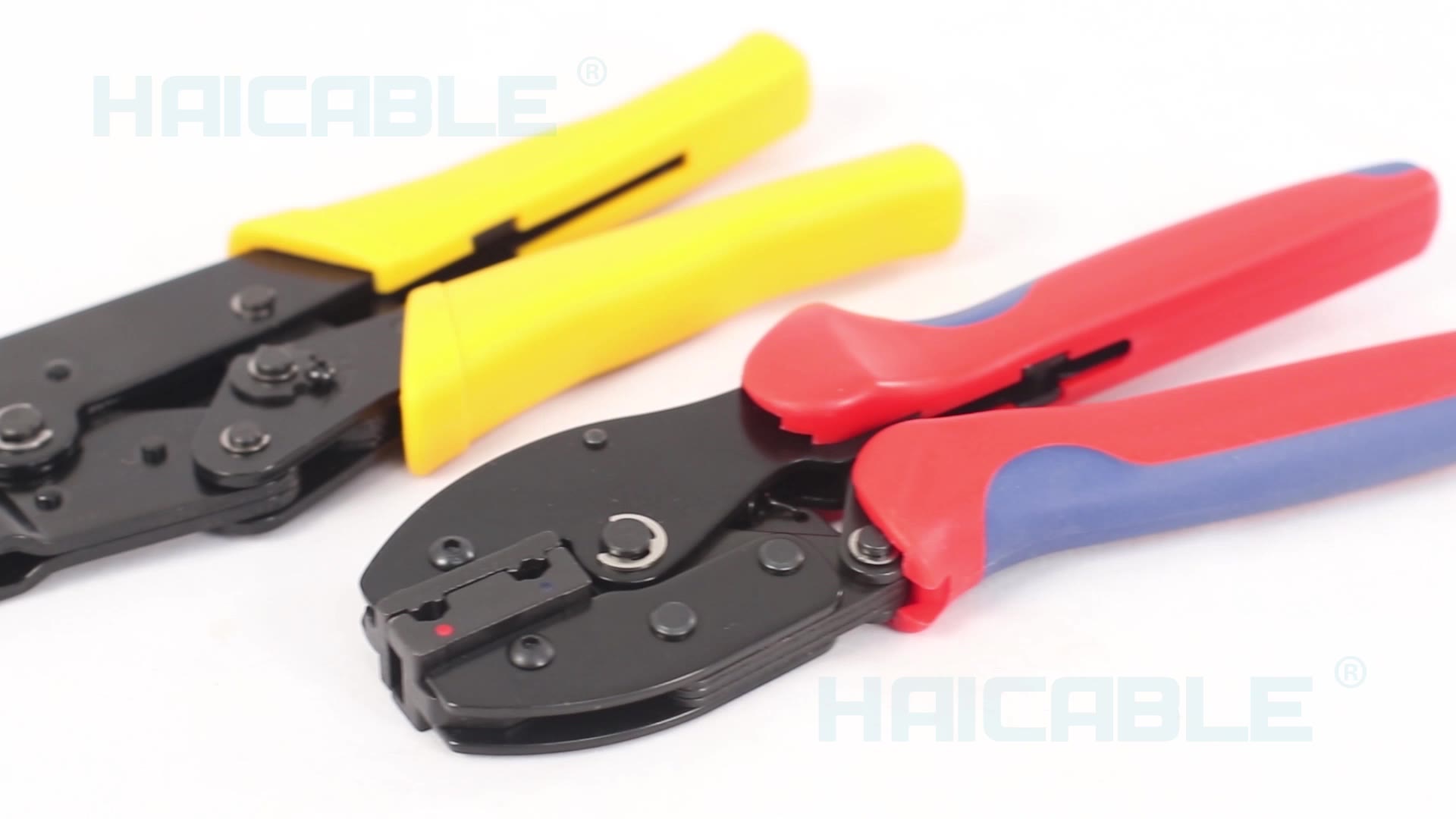

Catalogue Download Feature • There is more than 40 dies could be chosen, and we accept OEM dies. • Following format don’t include the terminals, Please check the ternimal type with our dies drawing. • Ergonomically designed TPR handles and Ratchet control • Reduce 50% energy when crimping. • Precise crimping die sets and integral lock with self-releasing machanism ensure high-quality crimping effect after crimping repeatedly. • Accurate adjustment before ex works delivery. • Light and compact structure keep crimping effect. Parameters No. Model No. Terminals Type Crimping Capacity Size(mm)/Weight(kg) 1 AN-30J Insulated Terminals and Connector 0.5-1.5mm2/20-16AWG 2.5mm2 / 14AWG 4-6mm2 / 12-10AWG 230/0.6 2 AN-03C Insulated Terminals and Connector 0.5-1.5mm2/20-16AWG 2.5mm2 / 14AWG 4-6mm2 / 12-10AWG 230/0.6 3. AN-18C Insulated terminals and Connector 10-16mm2 / 8-6AWG 230/0.6 4 AN-10 Non Insulated Terminals 1.5-6mm2 /17-10AWG 230/0.6 5 AN-101 Non Insulated Terminals 1.0-10mm2 /17-10AWG 230/0.6 6 AN-336N Non Insulated Terminals 1.5-10mm2 /20-8AWG 230/0.6 7 AN-04WFL Cord End Sleeve and Wire Ferrules 0.5-6mm2 / 20-16AWG 230/0.6 8 AN-06WF Cord End Sleeve and Wire Ferrules 0.5-6mm2 / 20-16AWG 230/0.6 9 AN-16WF Cord End Sleeve and Wire Ferrules 6-16mm2 / 10-5AWG 230/0.6 10 AN-25WF Cord End Sleeve and Wire Ferrules 6-25mm2 / 10-3AWG 230/0.6 11 AN-35WF Cord End Sleeve and Wire Ferrules 10-35mm2 / 8-2AWG 230/0.6 12 AN-26TW Cord End Sleeve and Wire Ferrules 2*0.5-6mm2/2*20-10AWG 230/0.6 13 AN-06WF2C Cord End Sleeve and Insulated terminals 0.5-6mm2 /0.5-2.5mm2 20-10AWG/20-14AWG 230/0.6 14 AN-03B Non-insulated Receptacles and Tab 0.5-6mm2 / 20-10AWG 230/0.6 15 AN-103 Wire Joint 0.5-6mm2 /20-10AWG 230/0.6 16 AN-0506FL Insulated 90°Flag Terminals 4.8mm2 /6.3mm2 3AWG/6AWG 230/0.6 17 AN-07FL Insulated 90°Flag Terminals 0.5-1.25mm2 /1.5-2.5mm2 20-18AWG /16-14AWG 230/0.6 18 AN-02H Coaxial cable 6.5mm/5.4mm/1.72mm RG59/62 230/0.6 19 AN-05H Coaxial cable 8.1/6.5/5.4/2.6/1.72mm RG58/59/62 230/0.6 20 AN-336C Coaxial cable 1.73/5.41/8.10mm RG58/59/62/6 230/0.6 21 AN-336J Coaxial cable 1.07/1.72/1.98/3.25/3.84/4.52MM RG174,179,Fiber Optic 230/0.6 22 AN-457 Coaxial cable 11/8.2/5.4MM RG58/6 230/0.6 23 AN-157 Airlines of Truned contact plugs 0.5-6 mm2/20-10AWG 230/0.6 24 AN-158 Airlines of Truned contact plugs 2.5-4-6mm2/13-10AWG 230/0.6 25 AN-1060A Open nose Terminals 10A-60A 230/0.6 26 AN-0510A Open nose Terminals 5A-10A 230/0.6 Application Our cable crimper mainly used for electrical working, State Grid construction, underground cable construction, Building construction etc.

Feature • Hexagon crimping type • Trigger Switch: Make ram advance by pressing it. Pressure can be hold when loose trigger switch • Manual Retraction Button: Dies can be retracted with ram by pressing retraction button for checking or adjusting during operation • Automatic Retraction Function: Dies automaitcally retract with ram once crimping is completed • Powerful Motor: ensure quick and efficient crimping • LED illuminates working area for easy operation • C-Shape 180 degree rotatable head for easy cable insertion and flexible operation in confined place • Automatic Motor Stop Function extremely save power. • 18v Li-ion Battery with high capacity and require short charging time • Plastic Case Package for easy carrying case • Nine dies #16, #25, #35, #50, #70, #95, #120, #150, #300 Parameters Model EMT-300CW Crimping Capacity Max Φ9mm Output 13T Hexagonal Die Set #16, #25, #35, #50, #70, #95, #120, #150, #300 Ram Stroke 30mm Battery Voltage 18V Battery Capacity 3Ah Charging time 2 hours Size 380*77*340mm Weight 7.0kg Accessories 4 Dies, 2 Battery,1 shoulder strap, 1 Charger, 1 Plastic Case Application Our cable crimper mainly used for electrical working, State Grid construction, underground cable construction, Building construction etc.

Catalogue Download Feature • One hand operation, rebar bar could be tried quickly and safety • Simple and easy operation, work automatically • Powered by the rechargeable battery. • Tying could be completed by putting the jaw onto the crossed-rebar and pulling the trigger only. • Carrying plastic case supplied well protection. Parameters Model WL-210 Tying Capacity Max Φ21mm Battery 9.6V Ni-Mh 3000mAh Voltage 110-240V, 50/60Hz Number of Tying Knots: 1200Pcs (one Ni-Mh battery) Charger 1hours for full charge Size 418×408×162mm Weight 7.5kg Accessories 1Pc Rebar tier machine, 2Pc Battery pack 1Pc Quick charger, 4Pcs of steel wire rolls 1pc of Inner Hexagon Spanner, 1pc of Sharp Nose Pliers Wire Type galvanized steel wire Application Our tying machine mainly used for Building construction, steel plants, railroads, bridge construction, oil & gas etc.

Feature • Stainless steel blade • Cutting Body Material: Aluminum Alloy • Cutting body surface treatment: Plastic – spraying • Apply to cut PVC pipe, PPR pipe, PE pipe, EXP pipe or other aluminum plastic pipe Parameters Model PC-323 Cutting type Wiring Duct Cutting range Max 42mm Length 230mm Weight 0.68 kg Application Used in panel shop , electrical switch cabinet assembly line , any places where small sizes of duct cutting work is needed.

Catalogue Download Feature • There is more than 40 dies could be chosen, And we accept OEM dies • Following format don’t include the terminals, Please check the ternimal type with our dies drawing. • Ergonomically designed TPR handles And Ratchet control • Reduce 50% energy when crimping. • Precise crimping die sets And integral lock with self-releasing machanism ensure high-quality crimping effect after crimping repeatedly. • Accurate adjustment before ex works delivery. • Light And compact structure keep crimping effect. Parameters No. Model No. Terminals Type Crimping Capacity Size(mm)/Weight(kg) 1 LY-30J Insulated Terminals LYd Connector 0.5-1.5mm2/20-16AWG 2.5mm2 / 14AWG 4-6mm2 / 12-10AWG 230/0.6 2 LY-03C Insulated Terminals LYd Connector 0.5-1.5mm2/20-16AWG 2.5mm2 / 14AWG 4-6mm2 / 12-10AWG 230/0.6 3. LY-18C Insulated terminals LYd Connector 10-16mm2 / 8-6AWG 230/0.6 4 LY-10 Non Insulated Terminals 1.5-6mm2 /17-10AWG 230/0.6 5 LY-101 Non Insulated Terminals 1.0-10mm2 /17-10AWG 230/0.6 6 LY-336N Non Insulated Terminals 1.5-10mm2 /20-8AWG 230/0.6 7 LY-04WFL Cord End Sleeve LYd Wire Ferrules 0.5-6mm2 / 20-16AWG 230/0.6 8 LY-06WF Cord End Sleeve LYd Wire Ferrules 0.5-6mm2 / 20-16AWG 230/0.6 9 LY-16WF Cord End Sleeve LYd Wire Ferrules 6-16mm2 / 10-5AWG 230/0.6 10 LY-25WF Cord End Sleeve LYd Wire Ferrules 6-25mm2 / 10-3AWG 230/0.6 11 LY-35WF Cord End Sleeve LYd Wire Ferrules 10-35mm2 / 8-2AWG 230/0.6 12 LY-26TW Cord End Sleeve LYd Wire Ferrules 2*0.5-6mm2/2*20-10AWG 230/0.6 13 LY-06WF2C Cord End Sleeve LYd Insulated terminals 0.5-6mm2 /0.5-2.5mm2 20-10AWG/20-14AWG 230/0.6 14 LY-03B Non-insulated Receptacles LYd Tab 0.5-6mm2 / 20-10AWG 230/0.6 15 LY-103 Wire Joint 0.5-6mm2 /20-10AWG 230/0.6 16 LY-0506FL Insulated 90°Flag Terminals 4.8mm2 /6.3mm2 3AWG/6AWG 230/0.6 17 LY-07FL Insulated 90°Flag Terminals 0.5-1.25mm2 /1.5-2.5mm2 20-18AWG /16-14AWG 230/0.6 18 LY-02H Coaxial cable 6.5mm/5.4mm/1.72mm RG59/62 230/0.6 19 LY-05H Coaxial cable 8.1/6.5/5.4/2.6/1.72mm RG58/59/62 230/0.6 20 LY-336C Coaxial cable 1.73/5.41/8.10mm RG58/59/62/6 230/0.6 21 LY-336J Coaxial cable 1.07/1.72/1.98/3.25/3.84/4.52MM RG174,179,Fiber Optic 230/0.6 22 LY-457 Coaxial cable 11/8.2/5.4MM RG58/6 230/0.6 23 LY-157 Airlines of Truned contact plugs 0.5-6 mm2/20-10AWG 230/0.6 24 LY-158 Airlines of Truned contact plugs 2.5-4-6mm2/13-10AWG 230/0.6 25 LY-1060A Open nose Terminals 10A-60A 230/0.6 26 LY-0510A Open nose Terminals 5A-10A 230/0.6 Application Our cable crimper mainly used for electrical working, State Grid construction, underground cable construction, Building construction etc.

Catalogue Download Feature • One hand operation, rebar bar could be tried quickly and safety • Simple and easy operation, work automatically • Powered by the rechargeable battery. •Tying could be completed by putting the jaw onto the crossed-rebar and pulling the trigger only. • Carrying plastic case supplied well protection. Parameters Model WL-400B Li-ion Tying Capacity Max Φ40mm Battery Li-ion DC 14.4V(4.4Ah) Voltage 110-240V, 50/60Hz Number of Tying Knots 3200Pcs (one Ni-Mh battery) Charger 70 minutes for full charge Size 295×120×275 mm Weight 1.9 kg Accessories 1Pc Rebar tier machine, 2Pc Battery pack 1Pc Quick charger, 3Pcs of steel wire rolls 1pc of Inner Hexagon Spanner, 1pc of Sharp Nose Pliers Wire Type galvanized steel wire Application Our tying machine mainly used for Building construction, steel plants, railroads, bridge construction, oil & gas etc.

Catalogue Download Feature • This Rebar Bending and Cutting Machine, combination cutting and bending function, improved the processing efficiency of steel bar/rebar. • Portable rebar bender is widely used in construction engineering for bending rebar, steel bar, steel rod etc. • easy maintenance, it can preset the bending angles from  angle allocator • Rebar Cutting Machine with Hydraulic drive, foot switch control operation, with 5 seconds any angle. The two side type angle selector can be set to accurately bend any angle from 0-180 degrees. • RBC-25 Portable Rebar Bending and Cutting Machine used for bending 6mm-25mm rebar, cutting 4-25mm rebar. Parameters Model RBC-25 Bending Capacity Φ6 - 25mm Cutting Capacity Φ4 - 25mm Bending Angle 0°- 180° Voltage 220V/110V Bending wattage 1600W/1700W Cutting Wattage 1300W/1440W Machine size 470*470*1000mm Weight 145 kg Application Our tying machine mainly used for Building construction, steel plants, railroads, bridge construction, oil & gas etc.

Catalogue Download Feature • Precision locator for terminal positions. • 1.2 metric tones pressure with minimal hand effort. • Interchangeable die set. • Crimp MC3* with optional die set. Parameters Model A2546B Capacity MC4： 2.5，4，6mm2 Length 270 mm Weight 0.74 kg
