This type of panel is the 1990s world most prevailing roofing panel,selflock fasteners with buckle and edgefixed are all hidden.There is no screw outside of the roofing.Installing swift and convenient,having good section characteristic,its life is raised by more than 2 times than ordinary.There is no seepage definitely,suitable for all roofing,stock the over the past several years main regeneration product.Cooperated with roll forming machine of curve,it can produce roofing system with skeleton. 1.Manual decoiler: manual decoil, passitive expansion 2.Inner diameter of decoiler: 508mm, 610mm 3.Decoiler capacity: 5T 4.Machine stand: welded by steel structure, shot blast after welding, get rid of inside stress 5.Motor power of forming machine:7.5KW 6.Motor power of hydraulic station:3KW 7.Roll stand:24 stations 8.Forming speed:12m/min 9.Material of roller:high-grade 40Cr alloy steel 10.The surface of roller coating chrome:single surface 0.05mm 11.Type of forming machine: wallboard type chain transmission 12.Bearing guard: ¢50 13.Diameter of shaft: ¢75mm 14.Chain: 16A 15.type of cutting:hydraulic cutting 16.Material of cutting blade: Cr12, Quenching hardness HRC58°-62° 17.Thickness of steel coil: 0.4-0.8mm 18.Panel width of feeding: 1000mm 19.Tolerance of length:10m±2mm 20.Specific size of profile: conform to roll forming panel GB/T12755-2008 standard used for china construction 21.Form of guiding with feeding station:side trolley type 22.Transducer: Holip (Danfoss) 23.Computer adopts PLC,OMRON Series 24.Hydraulic systemic working pressure: 12Mpa 25.Computer control system: whole machine adopts industrial computer PLC control, operating board adopts Xinjie OP320A 26.Output table: roller type
Wuxi Weihua Machinery Co., Ltd. is a professional manufacturer which is engaged in researching and developing, manufacturing and providing service for energy saving enclosure equipment for construction. Established in 1990s, Weihua has more than 20 years’ history of development. Company covers an area of 38 thousand square meters, the construction area of workshop and office area is 28 thousand square meters. Our products cover three areas: cold forming sectional steel equipment such as color steel purlin deck floor in the construction system; sandwich panel production line; coil slitting machine, leveling machine and cut to length machine. Among them, the whole sandwich panel production line technology and pentane foaming technology have been taking the leading position in the industry. It is also the only one manufacturer which has the whole technology of sandwich panel production line. The company is committed to developing, researching and innovating new products. And its scientific and technological content and technical level have been in the leading position in the industry. Among these years, it has provided equipment for several famous projects in the world, such as the United Nations protecting atmospheric ozone layer and eliminating HCFC project, Moscow International Airport, Guangzhou Baiyun Airport, Shanghai Pudong Hongqiao Airport, Beijing Olympic Games, Shanghai World Expo and so on. Our company has passed ISO international quality management system certification and CE certification, and now we have obtained dozens of patents. It has been classified as Wuxi municipal science and technology research and development unit. All products are exported all over the world.The enterprise tenet of Weihua is to make a positive contribution to the construction of energy-saving projects continuously .
Contact SupplierWuxi Weihua Machinery Co., Ltd. is a professional manufacturer which is engaged in researching and developing, manufacturing and providing service for energy saving enclosure equipment for construction. Established in 1990s, Weihua has more than 20 years’ history of development. Company covers an area of 38 thousand square meters, the construction area of workshop and office area is 28 thousand square meters. Our products cover three areas: cold forming sectional steel equipment such as color steel purlin deck floor in the construction system; sandwich panel production line; coil slitting machine, leveling machine and cut to length machine. Among them, the whole sandwich panel production line technology and pentane foaming technology have been taking the leading position in the industry. It is also the only one manufacturer which has the whole technology of sandwich panel production line. The company is committed to developing, researching and innovating new products. And its scientific and technological content and technical level have been in the leading position in the industry. Among these years, it has provided equipment for several famous projects in the world, such as the United Nations protecting atmospheric ozone layer and eliminating HCFC project, Moscow International Airport, Guangzhou Baiyun Airport, Shanghai Pudong Hongqiao Airport, Beijing Olympic Games, Shanghai World Expo and so on. Our company has passed ISO international quality management system certification and CE certification, and now we have obtained dozens of patents. It has been classified as Wuxi municipal science and technology research and development unit. All products are exported all over the world.The enterprise tenet of Weihua is to make a positive contribution to the construction of energy-saving projects continuously .
Contact Supplier1.coil width:914mm 2.Width after roll forming:610mm 3.thickness:0.8-1.2mm 4.Roll stand:19 5.Diameter of roller shaft:¢75mm 6.Main motor power:7.5KW 7.Main machine length×width×height:12×1.3×1.1(m) 8.Curving machine length×width×height: 1.1×1.5×2(m) 9.Motor power of curving machine:8.5KW 10.Motor of hydraulic station:3KW 11. Material of cutter blade:Cr12 12. Material of roller:45#; 13. Transducer:HOLIP 14. Adopt PLC computer type of Omron
Wuxi Weihua Machinery Co., Ltd. is a professional manufacturer which is engaged in researching and developing, manufacturing and providing service for energy saving enclosure equipment for construction. Established in 1990s, Weihua has more than 20 years’ history of development. Company covers an area of 38 thousand square meters, the construction area of workshop and office area is 28 thousand square meters. Our products cover three areas: cold forming sectional steel equipment such as color steel purlin deck floor in the construction system; sandwich panel production line; coil slitting machine, leveling machine and cut to length machine. Among them, the whole sandwich panel production line technology and pentane foaming technology have been taking the leading position in the industry. It is also the only one manufacturer which has the whole technology of sandwich panel production line. The company is committed to developing, researching and innovating new products. And its scientific and technological content and technical level have been in the leading position in the industry. Among these years, it has provided equipment for several famous projects in the world, such as the United Nations protecting atmospheric ozone layer and eliminating HCFC project, Moscow International Airport, Guangzhou Baiyun Airport, Shanghai Pudong Hongqiao Airport, Beijing Olympic Games, Shanghai World Expo and so on. Our company has passed ISO international quality management system certification and CE certification, and now we have obtained dozens of patents. It has been classified as Wuxi municipal science and technology research and development unit. All products are exported all over the world.The enterprise tenet of Weihua is to make a positive contribution to the construction of energy-saving projects continuously .
Contact Supplier1) Forming speed:10m/min 2) Thickness of steel coil:0.4-0.6mm 3)Diameter of roller: ¢50㎜(with thermal refining) 4) Material of roller:high-grade 45# steel (with thermal refining) 5) Surface of roller coated with chrome of 0.05mm thickness 6) Material of punching mould: 40Gr (with nitrification treatment) 7) Tolerance of product length:±2mm 8) Roller station:15 stations 9) Motor power of forming machine:4kw 10) Motor of hydraulic station:5.5kw 11) Transducer: Hongquan from Taiwan 12) Computer adopts PLC,Omron 13) Computer operating board adopts Xinjie OP320A
Wuxi Weihua Machinery Co., Ltd. is a professional manufacturer which is engaged in researching and developing, manufacturing and providing service for energy saving enclosure equipment for construction. Established in 1990s, Weihua has more than 20 years’ history of development. Company covers an area of 38 thousand square meters, the construction area of workshop and office area is 28 thousand square meters. Our products cover three areas: cold forming sectional steel equipment such as color steel purlin deck floor in the construction system; sandwich panel production line; coil slitting machine, leveling machine and cut to length machine. Among them, the whole sandwich panel production line technology and pentane foaming technology have been taking the leading position in the industry. It is also the only one manufacturer which has the whole technology of sandwich panel production line. The company is committed to developing, researching and innovating new products. And its scientific and technological content and technical level have been in the leading position in the industry. Among these years, it has provided equipment for several famous projects in the world, such as the United Nations protecting atmospheric ozone layer and eliminating HCFC project, Moscow International Airport, Guangzhou Baiyun Airport, Shanghai Pudong Hongqiao Airport, Beijing Olympic Games, Shanghai World Expo and so on. Our company has passed ISO international quality management system certification and CE certification, and now we have obtained dozens of patents. It has been classified as Wuxi municipal science and technology research and development unit. All products are exported all over the world.The enterprise tenet of Weihua is to make a positive contribution to the construction of energy-saving projects continuously .
Contact Supplier1.Decoiler:passive feeding,manual tightening 2.Rated load of decoiler:5T 3.Diameter of shaft: ¢60㎜ 4.Main motor power:5.5 kw 5.Linear speed: 10m/min 6.Roll stand:17 horizontal roller and a series of vertical roller 7.Material of roller:45# forging steel 8.Surface of roller: with chrome, single side 0.05mm 9.Raw material specification:color steel sheet 10.Thickness:0.5-0.6mm 11.Motor of hydraulic station:3kw 12.Hydraulic oil pump:gear pump CB-E314 13.Material of cutter blade:Cr12 14.Quenching hardness of cutter blade:HRC580-620 15.Cutting method:Mould cutting after forming 16.Length tolerance:±2mm 17.Transducer: Halip (Danfoss) 18.Computer: PLC, Omron 19.Computer operating board adopts OP320A, Thinget
Wuxi Weihua Machinery Co., Ltd. is a professional manufacturer which is engaged in researching and developing, manufacturing and providing service for energy saving enclosure equipment for construction. Established in 1990s, Weihua has more than 20 years’ history of development. Company covers an area of 38 thousand square meters, the construction area of workshop and office area is 28 thousand square meters. Our products cover three areas: cold forming sectional steel equipment such as color steel purlin deck floor in the construction system; sandwich panel production line; coil slitting machine, leveling machine and cut to length machine. Among them, the whole sandwich panel production line technology and pentane foaming technology have been taking the leading position in the industry. It is also the only one manufacturer which has the whole technology of sandwich panel production line. The company is committed to developing, researching and innovating new products. And its scientific and technological content and technical level have been in the leading position in the industry. Among these years, it has provided equipment for several famous projects in the world, such as the United Nations protecting atmospheric ozone layer and eliminating HCFC project, Moscow International Airport, Guangzhou Baiyun Airport, Shanghai Pudong Hongqiao Airport, Beijing Olympic Games, Shanghai World Expo and so on. Our company has passed ISO international quality management system certification and CE certification, and now we have obtained dozens of patents. It has been classified as Wuxi municipal science and technology research and development unit. All products are exported all over the world.The enterprise tenet of Weihua is to make a positive contribution to the construction of energy-saving projects continuously .
Contact Supplier1.Decoiler:Hydralic decoiler, 2.Weight capability of decoiler: 10T 3.Characteristic of decoiler: hydraulic-umbrella stand,the blocks extend 4.Power of motor of decoiler: 5.5KW 5.Power of hydraulic decoiler expansion: 2.2KW 6.Inner diameter of coil (ID): φ508mm,φ610mm 7.Outer diameter of coil (ID): φ1500mm 8.Width of coil: 1250mm 9.Material of coil: galvanized sheet, color steel sheet 10.Hydraulic pressure of decoil:10MPa 11.Machine stand adopts welded steel structure with shot blasting treatment 12.Locating of movable station:fixed by square key and screw 13.Bearing of fixed station:taper bearing installed in pairs 14.Stand type for guide feeding:side trolley type 15.Type of forming machine:single station with chain transmission 16.Specification of single station: WHPF40 17.Leader: ¢40㎜ 18.Diameter of roller shaft:¢80mm(thermal refining) 19.Diameter of bearing assembly hole: ¢60㎜ 20.Chain: 16A single row 21.Main motor power:5.5kw 22.Forming speed:1.5m/min(including stamping and cutting step) 23.Roller station:19 stations 24.Material of shaft:45# forging steel(thermal refining) 25.Surface of roller coated with chrome of 0.05mm thickness 26.Motor of hydraulic station:5.5kw 27.Hydraulic oil pump:gear pump CB-E314 28.Type of mould: hydraulic stamping mould 29.Step height of stamping: 15mm 30.Raw material intensity: Q235 31.Material of stam ping mould: 40Cr, with nitrification 32.Cutting: Hydraulic cutting 33.Material of cutter : Cr12 34.Heat treatment of blade: HRC58°-60° 35.Thickness of material:0.5-0.6mm 36.Coil width:1200mm 37.Tolerance of product length:±2mm 38.Type of output table: revolving cylinder(unpowered) 39.Type of transducer:Hongquan, Taiwan 40.Computer adopts PLC,Omron Series 41.Pressure of hydraulic system:12MPa 42.Computer operating board adopts Xinjie OP320A
Wuxi Weihua Machinery Co., Ltd. is a professional manufacturer which is engaged in researching and developing, manufacturing and providing service for energy saving enclosure equipment for construction. Established in 1990s, Weihua has more than 20 years’ history of development. Company covers an area of 38 thousand square meters, the construction area of workshop and office area is 28 thousand square meters. Our products cover three areas: cold forming sectional steel equipment such as color steel purlin deck floor in the construction system; sandwich panel production line; coil slitting machine, leveling machine and cut to length machine. Among them, the whole sandwich panel production line technology and pentane foaming technology have been taking the leading position in the industry. It is also the only one manufacturer which has the whole technology of sandwich panel production line. The company is committed to developing, researching and innovating new products. And its scientific and technological content and technical level have been in the leading position in the industry. Among these years, it has provided equipment for several famous projects in the world, such as the United Nations protecting atmospheric ozone layer and eliminating HCFC project, Moscow International Airport, Guangzhou Baiyun Airport, Shanghai Pudong Hongqiao Airport, Beijing Olympic Games, Shanghai World Expo and so on. Our company has passed ISO international quality management system certification and CE certification, and now we have obtained dozens of patents. It has been classified as Wuxi municipal science and technology research and development unit. All products are exported all over the world.The enterprise tenet of Weihua is to make a positive contribution to the construction of energy-saving projects continuously .
Contact Supplier1)Manual de-coiler:manual expanding,passive uncoil 2)De-coiler capacity: 5T 3)Machine stand: welded by steel structure, shot blast after welding, get rid of inside stress 4)guide feeding stand type:side trolley type 5)The type of feeding and straightening: two rollers for clamping and feeding, five rollers for straightening. 6)Punching type: pre-Hydraulic punching before roller forming 7)Punching die material: Cr12Mov, quenching process 8)Hydraulic pre-punching: 3 sets of punching mould 9)diameter of shaft: ¢70㎜ 10)diameter of roller: ¢150㎜ 11)transmission: Gearbox driven 12)motor power of forming machine:15KW×2=30KW 13)forming speed:0-10m/min 14)roll station:17 stations ( subject to the final design) 15)Material of roller: GCr15, quenching hardness is HRC58°-60° 16)heat treatment: forging--temper--anneal--normalizing--quenching—temper 17)Coil thickness: 4mm 18)Adopts hydraulic cutting 19)material of cutting blade:Cr12 20)heat treatment of cutting blade:HRC58°-60° 21)tolerance of length:10m±2mm 22)motor of hydraulic station:7.5kw 23)hydraulic oil pump:gear pump CB-E314 24)Computer adopts PLC, OMRON 25)Computer operating board adopt Thinget OP320A 26)transducer adopts Holip of Danfoss 27)output table: roller type
Wuxi Weihua Machinery Co., Ltd. is a professional manufacturer which is engaged in researching and developing, manufacturing and providing service for energy saving enclosure equipment for construction. Established in 1990s, Weihua has more than 20 years’ history of development. Company covers an area of 38 thousand square meters, the construction area of workshop and office area is 28 thousand square meters. Our products cover three areas: cold forming sectional steel equipment such as color steel purlin deck floor in the construction system; sandwich panel production line; coil slitting machine, leveling machine and cut to length machine. Among them, the whole sandwich panel production line technology and pentane foaming technology have been taking the leading position in the industry. It is also the only one manufacturer which has the whole technology of sandwich panel production line. The company is committed to developing, researching and innovating new products. And its scientific and technological content and technical level have been in the leading position in the industry. Among these years, it has provided equipment for several famous projects in the world, such as the United Nations protecting atmospheric ozone layer and eliminating HCFC project, Moscow International Airport, Guangzhou Baiyun Airport, Shanghai Pudong Hongqiao Airport, Beijing Olympic Games, Shanghai World Expo and so on. Our company has passed ISO international quality management system certification and CE certification, and now we have obtained dozens of patents. It has been classified as Wuxi municipal science and technology research and development unit. All products are exported all over the world.The enterprise tenet of Weihua is to make a positive contribution to the construction of energy-saving projects continuously .
Contact Supplier1) Manual decoiler: passive uncoiling, manual expanding 2) Weight capacity of decoiler: 15T 3) Machine stand adopts welded steel structure with shot blasting treatment. 4) Motor power of main forming machine:18.5KW×2 (380V/60Hz /3 phase) 5) Motor of hydraulic station:3KW 6) Hydraulic oil pump:gear pump CB-E314 7) Roller station:33 stations 8) Forming speed:10m/min 9) Material of roller: 45# forged steel (with heat treatment) 10) Surface of roller coated with chrome of 0.05mm thickness. 11) Type of main forming machine:single station with chain for transmission 12) Specification of single station: WHPF40 13) Leader: ¢40 14) Diameter of bearing assembly hole: ¢60 15) Diameter of roller shaft: ¢85 16) Chain: 20A 17) Cutting:hydraulic cutting 18) Material of cutting blade:Cr12, hardness is HRC60°-62° 19) Thickness of material:0.8-1.2mm 20) Feeding width: 1200mm 21) Tolerance of cutting length:10m±2mm 22) Locating of movable station:fixed by square key and screw 23) Bearing of fixed station:taper bearing installed in pairs 24) Type of feeder:side wheel type 25) Transducer:Hongquan 26) Computer adopts PLC, OMRON 27) Working pressure of hydraulic system:12Mpa 28) Computer operating board adopts Thinget OP320A 29) Output table: roller type without power
Wuxi Weihua Machinery Co., Ltd. is a professional manufacturer which is engaged in researching and developing, manufacturing and providing service for energy saving enclosure equipment for construction. Established in 1990s, Weihua has more than 20 years’ history of development. Company covers an area of 38 thousand square meters, the construction area of workshop and office area is 28 thousand square meters. Our products cover three areas: cold forming sectional steel equipment such as color steel purlin deck floor in the construction system; sandwich panel production line; coil slitting machine, leveling machine and cut to length machine. Among them, the whole sandwich panel production line technology and pentane foaming technology have been taking the leading position in the industry. It is also the only one manufacturer which has the whole technology of sandwich panel production line. The company is committed to developing, researching and innovating new products. And its scientific and technological content and technical level have been in the leading position in the industry. Among these years, it has provided equipment for several famous projects in the world, such as the United Nations protecting atmospheric ozone layer and eliminating HCFC project, Moscow International Airport, Guangzhou Baiyun Airport, Shanghai Pudong Hongqiao Airport, Beijing Olympic Games, Shanghai World Expo and so on. Our company has passed ISO international quality management system certification and CE certification, and now we have obtained dozens of patents. It has been classified as Wuxi municipal science and technology research and development unit. All products are exported all over the world.The enterprise tenet of Weihua is to make a positive contribution to the construction of energy-saving projects continuously .
Contact Supplier1.We have different manufacture technologies for C&Z roll forming line. Following is the best technologies. 1)Punching all holes and cut to length after roll formed. 2)Characteristics of punching all holes and cut to length after roll formed: A.The holes and length in longitudinal direction has high precision. B.Save a lot of material. C.The holes horizontal direction has high precision. D.Can fit more bad of the strip steel (cold rolled steel strip). E.It is easy to rectify the twist, arch bending & Lateral bending of purlin. 3)Experience has shown that our latest design which punching all holes and cut to length after roll formed is the best way to make sure the purlin has good quality. 2.The introduction of product design characteristics 2.1 Decoiler: The cantilever style. 2.2 Adopt two rollers for pinching & five rollers for leveling 2.3 Feeding guide stand type:side trolley type 2.4 Screw guide rail, screw guide with high precision ball screw and linear guide rail, the precision of the leadscrew rail is 0.02 mm, degree of hardness of HRC60 2.5 Screw transversal, the guide rail is generally used in machine tool machining center machine tool, now in the cold bending steel on its precision can satisfy completely.
Wuxi Weihua Machinery Co., Ltd. is a professional manufacturer which is engaged in researching and developing, manufacturing and providing service for energy saving enclosure equipment for construction. Established in 1990s, Weihua has more than 20 years’ history of development. Company covers an area of 38 thousand square meters, the construction area of workshop and office area is 28 thousand square meters. Our products cover three areas: cold forming sectional steel equipment such as color steel purlin deck floor in the construction system; sandwich panel production line; coil slitting machine, leveling machine and cut to length machine. Among them, the whole sandwich panel production line technology and pentane foaming technology have been taking the leading position in the industry. It is also the only one manufacturer which has the whole technology of sandwich panel production line. The company is committed to developing, researching and innovating new products. And its scientific and technological content and technical level have been in the leading position in the industry. Among these years, it has provided equipment for several famous projects in the world, such as the United Nations protecting atmospheric ozone layer and eliminating HCFC project, Moscow International Airport, Guangzhou Baiyun Airport, Shanghai Pudong Hongqiao Airport, Beijing Olympic Games, Shanghai World Expo and so on. Our company has passed ISO international quality management system certification and CE certification, and now we have obtained dozens of patents. It has been classified as Wuxi municipal science and technology research and development unit. All products are exported all over the world.The enterprise tenet of Weihua is to make a positive contribution to the construction of energy-saving projects continuously .

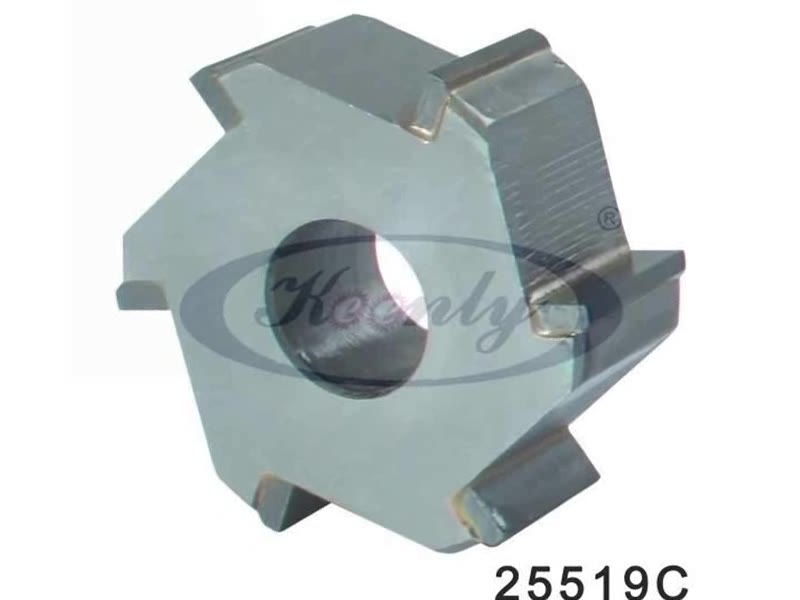

Contact SupplierKeenly Tools Co., Ltd, established in 2000 by a professional engineer, our manufacturing company is engaged in producing road surface preparation products. . With our main series including Scarifier Machine, Scarifier Cutter, and Drum…we have now achieved monthly output capacities totaling 200,000 pieces. At the same time we have right to Import and Export. Keenly Tools Imp. & Exp. Co., Ltd is a branch company of Keenly Tools C., Ltd. which exports our products to all of world. In order to provide customers with the best products, our management staff has used their years of experience to implement a standardized production system that is in accordance with international standards. With our products selling well in markets worldwide, our main overseas clients are in the USA, Europe, Canada, Middle East and Southeast Asia. Moreover, having a highly flexible product development and manufacturing capability, we are able to offer an OEM/ODM service to all clients. Under this system, our R&D engineers work together with buyers to fill customized orders in accordance with their supplied design, functional parameters or samples. For more information about any of our product series or to place a requirement, please either take a look at our website or contact us directly. Striving to ensure total customer satisfaction, we hope to have the opportunity of being able to work with your company.
Contact SupplierKeenly Tools Co., Ltd, established in 2000 by a professional engineer, our manufacturing company is engaged in producing road surface preparation products. . With our main series including Scarifier Machine, Scarifier Cutter, and Drum…we have now achieved monthly output capacities totaling 200,000 pieces. At the same time we have right to Import and Export. Keenly Tools Imp. & Exp. Co., Ltd is a branch company of Keenly Tools C., Ltd. which exports our products to all of world. In order to provide customers with the best products, our management staff has used their years of experience to implement a standardized production system that is in accordance with international standards. With our products selling well in markets worldwide, our main overseas clients are in the USA, Europe, Canada, Middle East and Southeast Asia. Moreover, having a highly flexible product development and manufacturing capability, we are able to offer an OEM/ODM service to all clients. Under this system, our R&D engineers work together with buyers to fill customized orders in accordance with their supplied design, functional parameters or samples. For more information about any of our product series or to place a requirement, please either take a look at our website or contact us directly. Striving to ensure total customer satisfaction, we hope to have the opportunity of being able to work with your company.
Contact SupplierKeenly Tools Co., Ltd, established in 2000 by a professional engineer, our manufacturing company is engaged in producing road surface preparation products. . With our main series including Scarifier Machine, Scarifier Cutter, and Drum…we have now achieved monthly output capacities totaling 200,000 pieces. At the same time we have right to Import and Export. Keenly Tools Imp. & Exp. Co., Ltd is a branch company of Keenly Tools C., Ltd. which exports our products to all of world. In order to provide customers with the best products, our management staff has used their years of experience to implement a standardized production system that is in accordance with international standards. With our products selling well in markets worldwide, our main overseas clients are in the USA, Europe, Canada, Middle East and Southeast Asia. Moreover, having a highly flexible product development and manufacturing capability, we are able to offer an OEM/ODM service to all clients. Under this system, our R&D engineers work together with buyers to fill customized orders in accordance with their supplied design, functional parameters or samples. For more information about any of our product series or to place a requirement, please either take a look at our website or contact us directly. Striving to ensure total customer satisfaction, we hope to have the opportunity of being able to work with your company.
Contact Supplier
