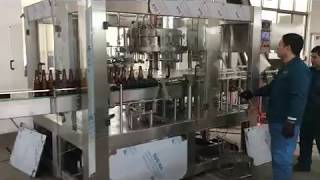

Automatic glass bottle beer filling capping machine Application    This SD-XGF Wash-filling-capping 3-in-1 is used to produce beer filling machine. It can finish all the process bottle washing, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency. Technical Parameters   Model Washing heads Filling heads Capping heads Capacity(b/h) 500ml Motor power (KW) Overall dimension (mm) SD14-12-4 14 12 4 2000bph 3.5KW 2500x1700x2500 SD18-18-6 18 18 6 3000bph 3.75KW 2800x1900x2650 SD24-24-8 24 24 8 4000bph 5.5KW 3000x2100x2650 SD32-32-10 32 32 10 6000bph 5.75KW 3500x2500x2650 SD40-40-10 40 40 10 8000bph 6.5KW 4000x1800x2650 SD48-48-12 48 48 12 12000bph 7.5KW 4500x4500x3400 SD60-60-15 60 60 15 15000bph 9KW 5000x4500x3400

                                                Automatic juice bottle 3 in 1 filling machine Application The plant  is mainly used in hot filling and sealing of green tea,black tea,wulong tea and fruit juice drink. It also can be used for mineral water, pure water and many other no gas containing drinksThis machine integrates washing,filling and capping together. The design is scientific and resonable. Its apperance is beautiful. Its operation and maintenance is convenient. The automation is high. It is good equipment for choosing hot drink filling machine. Technical Parameters Model SD16-12-6 SD18-18-6 SD24-24-8 SD32-32-10 capacity(500ml)(b/h) 3000 5000-6000 8000-10000 12000-14000 bottle (mm ) Diameter 50-92; Height:150-310 Diameter:50-92 Height:150-310 Diameter: 50-92; Height :150-310 Diameter:50-92; Height:150-310 weight 2500 3000 4000 5000 dimensions(L*W*H)(mm) 2150×1500×2200 2600×1800×2200 3000×2180×2200 3600×2800×3150

carbonated water washing filling capping machine Application This carbonated drink filling machine is used in carbonated water, carbonated water packaged in polyester bottle ,washing ,filling and capping are intergrated in one machine .The advanced technology is used in the design ,gravity fixed liquid surface filling is used ,the amount of liquid is contralled accuratelly ,the filling is fast ,the amount of liquid is contralled accuratelly ,the dropping and leakage is avoided. Technical Parameters Model SD8-8-3 SD16-12-6 SD18-18-6 SD24-24-8 SD32-32-10 SD40-40-10 Rinsing Head 8 12 18 24 32 40 Filling Head 8 12 18 24 32 40 Capping Head 3 6 6 8 10 10 Capacity (500ml)/ BPH 1200-1500 2500 3500-4000 7000-7500 8000-10000 10000-12000

water three-in-one washing, filling and sealing machine Application washing filling and capping three in one filling equipment is one high precision and speed liquid filling machine, product design adopts bottle-neck block technology, not only avoid bottle-neck second pollution, but also can produce different bottle shape filling in one machine. Greatly improve the equipment usage scope. Production capacity from 3000bottles per hour to 3600bottles per hour can be choose by customer. Main-frame machine adopts frequency conversion timing motor, convenience adjustment speed within throughput. Technical parameters Model Capacity 330ml 500ml 1000ml 1500ml 2000ml SD-XGF-12-12-4 4000 3000 2500 2000 1500 SD-XGF-18-18-6 8000 6000 5500 5000 4500 SD-XGF-24-24-8 10000 8000 6500 5500 5000 SD-XGF-32-32-8 14000 12000 10000 8000 6000 SD-XGF-40-40-12 18000 16000 12000 9000 7000

Application This machine is specially made for all kinds of viscousity materials, such as chocolate paste，peanut butter, honey, butter, Mayonnaise, ketchup etc. All the contacted part with the oil is high quality stainless steel.. The machine adopts piston pump for filling. By adjusting the piston pump, it can fill all of the bottles in one filling machine, with quick speed and high precision. Technical Parameters Program SD-GZJ4 Filling head 4, 8,16,12 head can customized) Filling volume 100-1000ml Filling speed 1000 -12000 b/h Filling precision ≤±1% Power supply 380V/220 50-60HZ Power ≤1.5kw Air pressure 200L/min Net weight To be confirmed Dimension(mm) To be confirmed

Summary The YG series equipment is mainly used for the filling production of liquid . It is composed of auto-bottle settling machine, piston pump filling machine, capping machine, labelling, aluminum foil clapper, PE film shrink wrapping machine. This machine is very suitable for the production of those liquid and ointment products. Principles and characteristics 1. SD-YG series filling machine is developed by our company, suitable for filling a series of high concentrations of fluids. It is through SERVO MOTOR to drive a piston and transfer--valve’s Three Contacts principle to extract and to split out the highly concentrated material, and by magnetism-reed switch to control air cylinder’s travel, then can adjust the filling volume. 2. This device is simple and reasonable in structure, easy to understand, with high accuracy. 3. Pneumatic part adopts Taiwan Airtec pneumatic components. All part contacted with material is 316L stainless steel. 4. Filling volume and filling speed can be arbitrarily adjusted with high filling accuracy. 5. Filling head adopts anti-drip, anti-drawing and lifting devices. 6. meet GMP standard Specifications Filling speed: 5000-6000b/h(can customized) Filling range: 125, 200, 300, 700ml (can customized) Filling precision: ≦±1﹪ Current: 16A Voltage: 220/110V 50/60Hz Power: <2.5kW Pressure: 0.4－0.6MPa Machine Size: 2100*1500*2000mm (for reference only)

The Process of dental floss Packaging line ( pls ref the video for each step) 1. The big dental floss roll to the small rolls 30m first on the winding machine; 2. Workers put dental floss roll in the box by hand, then put the already packaged box on the conveyor and delivery to the box labeling machine; 3. After labeling progress , box go on delivery on the conveyor to the printer device part, printing date and batch number on box body one by one. 4. The Industrial blower dry the ink after printing. Drawing

Main specifications and technical parameters • Servo motor total power: 800W; • Voltage: 220V 50 ~ 60HZ • Dimensions: 3000mm × 1500mm × 1300mm ； • Weight 150Kg Working condition and application of environmental a. Operating temperature: 20 to 30 ℃ b. Operating Humidity: 30% ~ 80% RH c. The working environment: non-inflammable and explosive gas and dust No Name Model Number Brand 1 PLC Control system TP04G-AL-C 1 set Taiwan DELTA 2 Touch screen DVP14SS211R 1 set Taiwan DELTA 3 Servo motor TL-A230P-BT32AA 2 sets American AB 4 Servo driver 2071-AP4 2 sets American AB 5 24V DC electrical source PMC-240751AA 1set Taiwan DELTA 6 Relay RX2E1M2C 1 set France Schneide

Model BFM-ALS104 Driving Mode German Avery brand Yield（pcs/min） 20-120 Operating direction Left or Right Conveyor Speed（m/min） ≤40 Labeling Accuracy ±1.0 mm Label material Adhesive sticker, opaque or transparent label The inner diameter of label roll 76 mm The outer diameter of label roll 350 mm(max) The suitable size of label Width 15-80 mm  length 15-100 mm The suitable size of labeling objects Can customized Printer use air 5kg/cm ² Voltage (In China) AC220V 50/60HZ Single phase (Can customized as client need)

Model BFM-ALS104 Driving Mode German Avery brand Yield（pcs/min） 20-120 Operating direction Left or Right Conveyor Speed（m/min） ≤40 Labeling Accuracy ±1.0 mm Label material Adhesive sticker, opaque or transparent label The inner diameter of label roll 76 mm The outer diameter of label roll 350 mm(max) The suitable size of label Width 15-80 mm  length 15-100 mm The suitable size of labeling objects Can customized Printer use air 5kg/cm ² Voltage (In China) AC220V 50/60HZ Single phase (Can customized as client need)

Model BFM-ALS104 Driving Mode German Avery Brand Yield（pcs/min） 20-120 Operating direction Left or Right Conveyor Speed（m/min） ≤40 Labeling Accuracy ±1.0 mm Label material Adhesive sticker, opaque or transparent label The inner diameter of label roll 76 mm The outer diameter of label roll 350 mm(max) The suitable size of label Width 15-110 mm  length 15-150 mm The suitable size of labeling objects Can customized Printer use air 5kg/cm ² Voltage (In China) AC220V 50/60HZ Single phase (Can customized as client need)

Model PLM-S Driving Mode Servo motor Yield（pcs/min） 10-80(depends on product and label size) Operating direction Left or Right Conveyor Speed（m/min） ≤40 Labeling Accuracy ±1.0 mm The inner diameter of label roll 76 mm The outer diameter of label roll 350 mm(max) The suitable size of label Width 15-150 mm  length 15-300 mm The suitable size of labeling objects Can customized Printer use air 5kg/cm ² Voltage (In China) AC220V 50/60HZ Single phase (Can customized as client need) Power（w） 850W Weight（kg） 360 Machine size 2300（L） 800 (W)  1500 (H) mm
