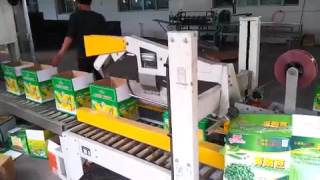

Summary SD-KX 18 high speed box machine adopts automatic program, adapt to different carton size. The machine adopts the cam continuous system, the machine running reliable, stable, durable. Break through the traditional tape device design, sealing sealing tape Fu Ping, the effect is good, no jump belt. Any self adhesive tape can be used. Forming and sealing feed stepless speed control, the speed is adjustable, can save time. Simple operation, easy to adjust, no damage on carton. Carton storage mining horizontal, may at any time to replenish the empty box. Automatic alert to replace tape and replenish the empty box. Technical parameters: Out of the box capacity: 18 boxes/ min Carton storage quantity: 70PCS Carton size: L280-500*W200-400*H200-400MM The necessary air pressure: 5bar Air consumption: 450NL/MIN Mechanical dimensions: L2780*W1250*H1840MM

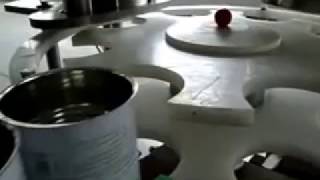

Sealing Sealing machine is composed by osculum, turning manipulator, cylinder, rail, etc. Equant Geneva movement is acted by precision CAM decollators via gear transmission. And then turn into the uniform scale, and put lid on can and sealing at uniform scale different place. Upper cover is acted by machine arm, and machine arm is worked by cylinder. And then the rolling knife turns 360° to seal. The lifting movement is acted by CAM and upper tooth shape leverage on motor shaft. One main motor provide the power for uniform scale and sealing action, this could ensure the coordination of action. The sealing head have skid institutions, it could ensure the tighten of cap, and also avoid to hurt the caps. Main technical parameters Can diameter：50mm-100mm Can height：60mm-190mm Power：1.5KW Capacity： 30-35cans/min Air pressure：0.5～0.7Mpa Dimension：1200*850*1500mm

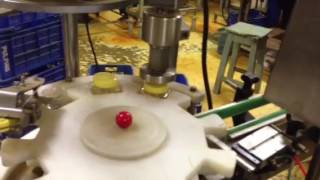

Summary This is multi-functional automatic cap ordering, cap feeding, cap pressing and reject device. The structure is Compact, operation is simple, and maintenance is convenient. Technical parameters Model: SD- YG65 Voltage: 380V. Power: 0.85 KW Air pressure: 0.45 a 0.7 MPa Weight: 400Kg

Overview: This machine is specially made for all kinds of viscousity materials, such as chocolate paste，peanut butter, honey, butter, Mayonnaise, ketchup etc. All the contacted part with the chemical oil is high quality stainless steel.. The machine adopts piston pump for filling. By adjusting the position pump, it can fill all of the bottles in one filling machine, with quick speed and high precision. Item Piston pump filling machine Filling nozzle 12 Filling system Piston pump driven by servo motor Filling range 500-1000ml Filling speed 3600 b/hr based on 1L; Filling precision ±1% Power 220/380V 50/60Hz  3.5Kw Air pressure range 0.4 Mpa Weight 600Kg Machine side L1800*W1200*H1800

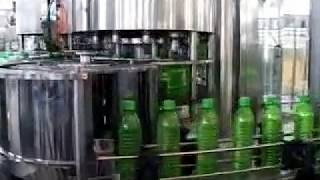

General description The bottle enters into the rinsing part of three-in-one machine through air conveyor. The gripper installed on the rotary disk catches bottle and turns it over 180 degrees and makes the bottleneck face ground. In the special rinsing area, the nozzle on the gripper sprays juice to rinse bottle inwall. After rinsing and draining, the bottle turns over 180 degrees along the guide rail and make the bottleneck faces sky. Then rinsed bottle is transferred to the filling part through poking bottle starwheel. The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts pressure filling way. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling, the full bottle is transferred to the capping part through hold neck transition poking wheel. The stop screwing knife holds the bottleneck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through starwheel. The whole machine is enclosed with windows, the height of enclosed window is higher than the peak of the 3 in 1 machine, in the bottom of the enclosed window has return air outlet Model CGF12125 CGF18186 CGF24248 CGF323210 CGF404012 CGF505012 CGF606015 CGF808020 Number of washing,  filling and capping heads 2012-12-4 18-18-6 24-24-8 32-32-10 40-40-12 50-50-12 60-60-15 80-80-20 Production  capacity(600ml) (B/H) 2000- 4000 5000- 7000 8000- 12000 12000- 15000 16000- 20000 20000- 24000 25000- 30000 35000- 40000 Motor power(kw) Main  motor  2.2kw Main  motor  2.2kw Main  motor  3kw Main  motor  5.5kw Main  motor  7.5kw Main  motor  11kw Main  motor  15kw Main  motor 1 9kw Overall dimensions (mm) 2400× 1650 ×2500 2600× 1920 ×2550 3100× 2300 ×2800 3800× 2800 ×2900 4600× 2800 ×2900 5450× 3300 ×2900 6500× 4500 ×2900 76800× 66400 ×2850 Weight (kg) 2500 3500 4500 6500 8500 9800 12800 15000

General Description The bottle enters into the rinsing part of three-in-one machine through air conveyor. The gripper installed on the rotary disk catches bottle and turns it over 180 degrees and makes the bottleneck face ground. In the special rinsing area, the nozzle on the gripper sprays water to rinse bottle inwall. After rinsing and draining, the bottle turns over 180 degrees along the guide rail and make the bottleneck faces sky. Then rinsed bottle is transferred to the filling part through poking bottle starwheel. The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts balance pressure filling way. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling, the full bottle is transferred to the capping part through hold neck transition poking wheel. The stop screwing knife holds the bottleneck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through starwheel. The whole machine is enclosed with windows, the height of enclosed window is higher than the peak of the 3 in 1 machine, in the bottom of the enclosed window has return air outlet Model CGF12125 CGF18186 CGF24248 CGF323210 CGF404012 CGF505012 CGF606015 CGF808020 Number of washing,  filling and capping heads 2012-12-4 18-18-6 24-24-8 32-32-10 40-40-12 50-50-12 60-60-15 80-80-20 Production  capacity(600ml) (B/H) 2000- 4000 5000- 7000 8000- 12000 12000- 15000 16000- 20000 20000- 24000 25000- 30000 35000- 40000 suitable bottle  specification(mm) φ=50-110 H=170 volume=330-2250ml Washing  pressure(kg/cm2 ) 2~3 Motor power(kw) Main  motor  2.2kw Main  motor  2.2kw Main  motor  3kw Main  motor  5.5kw Main  motor  7.5kw Main  motor  11kw Main  motor  15kw Main  motor 1 9kw Overall dimensions (mm) 2400× 1650 ×2500 2600× 1920 ×2550 3100× 2300 ×2800 3800× 2800 ×2900 4600× 2800 ×2900 5450× 3300 ×2900 6500× 4500 ×2900 76800× 66400 ×2850 Weight (kg) 2500 3500 4500 6500 8500 9800 12800 15000

General description The bottle enters into the rinsing part of three-in-one machine through air conveyor. The gripper installed on the rotary disk catches bottle and turns it over 180 degrees and makes the bottleneck face ground. In the special rinsing area, the nozzle on the gripper sprays juice to rinse bottle inwall. After rinsing and draining, the bottle turns over 180 degrees along the guide rail and make the bottleneck faces sky. Then rinsed bottle is transferred to the filling part through poking bottle starwheel. The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts pressure filling way. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling, the full bottle is transferred to the capping part through hold neck transition poking wheel. The stop screwing knife holds the bottleneck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through starwheel. The whole machine is enclosed with windows, the height of enclosed window is higher than the peak of the 3 in 1 machine, in the bottom of the enclosed window has return air outlet Model CGF12125 CGF18186 CGF24248 CGF323210 CGF404012 CGF505012 CGF606015 CGF808020 Number of washing,  filling and capping heads 12-12-4 18-18-6 24-24-8 32-32-10 40-40-12 50-50-12 60-60-15 80-80-20 Production  capacity(600ml) (B/H) 2000- 4000 5000- 7000 8000- 12000 12000- 15000 16000- 20000 20000- 24000 25000- 30000 35000- 40000 Motor power(kw) Main  motor  2.2kw Main  motor  2.2kw Main  motor  3kw Main  motor  5.5kw Main  motor  7.5kw Main  motor  11kw Main  motor  15kw Main  motor 1 9kw Overall dimensions (mm) 2400× 1650 ×2500 2600× 1920 ×2550 3100× 2300 ×2800 3800× 2800 ×2900 4600× 2800 ×2900 5450× 3300 ×2900 6500× 4500 ×2900 76800× 66400 ×2850 Weight (kg) 2500 3500 4500 6500 8500 9800 12800 15000

Summary Unscramble the plastic bottles, then transfer them to air conveyor in order and in certain direction and feed them into other equipment to carry out next procedure (for example, feed into washing/filling/capping 3in1 monobloc). It decreases labor intensity and improves productivity, and also prevent from twice pollution caused by hand touching PET bottle. Model SD-LPJ-8 Production capacity 12000 BPH Bottle type Round shaped bottle (PET bottle) Suitable bottle diameter 50mm - 98mm Suitable bottle height 150mm – 310mm Power of main moto 5KW Diameter of the machine(LxWxH) 2200×2000×2300mm Total weight 2000kg

Summary According client’s request, adopt automatic piston type nozzle paste machine, we adopt overseas advanced techniques .This machine adopt SUS316 SS piston-type measuring pump to fill, economic and compact, suitable for pharmacy ,food industry, farm chemical ,chemical engineering, cosmetic and etc. and meet GMP requirement.  Model SD-YG-2/1 Filling head 2 nozzles Capping head 1nozzle Capacity 800-1000B/H Filling range 100ml Power 380V 50Hz Electric power ≤1.5kw Compressed air pressure 0.4-0.6MPa Weight 650kg Dimension（L*W*H） 1450*1150*2200mm

Automatic cup filling and sealing machine Application: Automatic cup filling sealing machine is widely used to the food industry, such as jelly,etc. It can loading cups, filling product into cups, sealing cups by roll film/precut film and finished output automatically. The product contact parts made of stainless steel, which is produced in strict accordance with the food industry hygiene standards; Plastic tray and odd shaped trays, can be customized as requirement Features: 1. Control system: Omron PLC programmed control system and touch screen, intuition, stable and easy to operate. 2. Driven system: Mitsubishi servo system for indexing positioning, high accuracy and high speed. 3. High quality components: AIRTAC cylinder and solenoid value, Omron sensor and electronic components. 4. Machine material: It is made by stainless steel 304 and anodized aluminum alloy, material contact parts adopt 316SS, like valve, piston, buffering tank, filling nozzle etc. 5. Sealing material: the machine precut aluminum foil to sealing the cups, more economical and health. 6. Filling system: the filling system use piston pump that is driven by high precision cylinder which ensure accurate filling the product. 7. The machine’s filling system used the clamp-type connectors, disassemble and clean filling system speedy and convenient. 8. Special circumstances can be customized according to customer requirements. Technical parameter: Model SD-SBJ4 SD-SBJ6 Application water,juice,jelly,sauces water,juice,jelly,sauces Measuring method Piston pump Capacity 3,000pcs/hr. 4,000pcs/hr. Filling volume customized Packing material Container Cups Film Alu precut foil/roll film Power consumption 4kw 6kw Power 3N-50HZ 380V 3N-50HZ 380V Air resource 1.0m³/min 2.0m³/min Dimension（L*W*H） 3000mm×1000mm×2000mm 4000mm×1500mm×2000mm Weight 1200 kg 1800 kg

Automatic piston pump filling machine for sauce, jam, paste This machine is specially made for all kinds of viscosity materials, such as chocolate paste，peanut butter, honey, butter, Mayonnaise, ketchup etc. All the contacted part with the chemical oil is high quality stainless steel. The machine adopts piston pump for filling. By adjusting the position pump, it can fill all of the bottles in one filling machine, with quick speed and high precision. Feature: · No bottle no filling · drip-proof filling nozzle · easy cleaning structure · jacket hopper for hot filling products · servo motor driven, HMI control Technical parameter: Item Piston pump filling machine Filling nozzle 2, 4, 6, 8, 10, 12, 16 Filling system Piston pump Filling range 100-1,000g; 1000-5000ml (Customized as clients` request) Filling speed 1000-6,000 bottles /hour Filling precision ±1% Power 380V 50/60Hz 3.2Kw Air pressure range 0.6-0.8Mpa Weight 400Kg Machine side L1600*W1200*H1800 (L*W*Hmm)

Automatic liquid, oil weighing filling machine Introduction: This filling machine adopts the PLC and the weighing feedback system that makes a higher filling precision. All operations complete on the touching screen. It is reliable, stable, widely used for 5-30L oil and other liquid filling. Performance advantages 1. Control system--- Delta PLC, random trimming filling measurement. 2. Operation interface--- colorful touching screen, visible, easy to operate, weighing results displays on the screen, too. 3. Function improvement---the feeding nozzles are equipped with filling blockers to prevent leaking and dropping, can also realize diving filling according to the material properties.(this function can be selected) 4. Real-time alarm---automatic stopping and alarming when the system appears serious breakdown. 5. Electrical elements---adopting international famous brand to ensure the remarkable quality, stability and high precision. 6. Machine elements---the parts touching the material using the high-quality sus 316 and non-poisonous, anti-corrosive PTEF hose. Others use the sus 304. 7. Expansion function----- We can carry out special configuration according to the customers’ requirements.(material airtight, heating and sterilizing etc.) 8. Counting detection----real- time counting, reflecting the output directly. 9. Filling detection----No-bottle no-filling, it will not conduct filling if the bottles are not enough. Filling precision is ± 0.03%, more accurate than the original ± 1%. 10. Environmental protection configuration--- equipped with eco-friendly frame, (this environmental protection configuration can be selected), fully accords to the GMPrequirements, easy to disassemble and clean. 11. Adaptability--- ideal for 20L large-dose packaging range, one machine can fit for the big range, no need to change parts, just need easy adjustment. Main technical parameters 1. Filling head: 2, 4, 6 heads 2. Application: oil and all kinds of liquid 3. Power:380V, 50HZ 4. Bottle size: 5-30L 5. Filling precision: ±0. 1% 6. Filling Speed: 400-1500 b/hr@5L 7. Machine weight: 800kg 8. Overall Dimension: 1500*1200*1850
