Main performance and functional characteristics 1.Equipped with safety protection, comply with firm’s safety management requirements. 2.Use intelligent temperature controller to have accurate temperature, which ensures the artistic and neat seal. 3.Use PLC Servo System and pneumatic control system and super touch screen to compose the drive control center which maximize the whole machine’s control precision ,reliability and intelligentized level. 4.This machine completes automatically the whole packing procedure of loading materials, measuring, bag making, sealing, date printing, air charging ( or exhausting) and finish products transporting as well as counting. 5.Touch screen can store the technical parameters of various kinds of products ,it is unnecessary to reset while products changing. 6.With error indicating system , which help to handle the trouble immediately. 7.Make pillow bags and hanging bags in terms of customers’ different.

Model KL-320 KL-420 Making bag size (L)60-250mm, (W)50-150mm (L)60-300mm, (W)60-200mm Packing Speed 25-75Bags/Min Depend on the packing weight 25-65Bags/Min Depend on the packing weight Power Supply 220V, 50-60Hz, 3.0 Kw 220V, 50-60Hz, 3.6Kw Compressed air consumption 6-8 kg/m2 ~0.3 m3/min 6-8 kg/m2~ 0.3 m3/min Weight 400 Kg 450 kg Dimension 1450×1000×1400 (mm) 1450×1100×1500 (mm) Model KL-520 KL-620 Making bag size (L)80-350mm, (W)80-250mm (L)100-400mm, (W)100-300mm Packing Speed 25-75Bags/Min Depend on the packing weight 25-65Bags/Min Depend on the packing weight Power Supply 220V, 50-60Hz, 3.0 Kw 220V, 50-60Hz, 3.6Kw Compressed air consumption 6-8 kg/m2 ~0.3 m3/min 6-8 kg/m2~ 0.3 m3/min Weight 500 Kg 600 kg Dimension 1450×1000×1400 (mm) 1450×1100×1500 (mm) Model KL-820 KL-1250 Making bag size (L)120-500mm, (W)120-400mm (L)150-800mm, (W)150-600mm Packing Speed 25-75Bags/Min Depend on the packing weight 25-65Bags/Min Depend on the packing weight ower Supply 220V, 50-60Hz, 3.0 Kw 220V, 50-60Hz, 3.6Kw Compressed air consumption 6-8 kg/m2 ~0.3 m3/min 6-8 kg/m2~ 0.3 m3/min Weight 650 Kg 800 kg Dimension 1450×1000×1400 (mm) 1450×1100×1500 (mm)

Equipment technical parameters: 1.This set of automatic weighing and packing system This machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc. 2.Main performance and functional characteristics 1.Equipped with safety protection, comply with firm’s safety management requirements. 2.Use intelligent temperature controller to have accurate temperature, which ensures the artistic and neat seal. 3.Use PLC Servo System and pneumatic control system and super touch screen to compose the drive control center which maximize the whole machine’s control precision ,reliability and intelligentized level. 4.Touch screen can store the technical parameters of various kinds of products ,it is unnecessary to reset while products changing. 5. With error indicating system , which help to handle the trouble immediately. 6. Make pillow bags and hanging bags in terms of customers’ different requirements.

Equipment profile: It is widely used in packing filling of sweetened bean paste, filling of lotus meat, fruit jam, Chinese watermelon jam, cheese jam, sauce, salad, lotion, liquid, semi liquid. Equipped with input pump, the machine could automatically pack the products in high temperature that will improve the productivity, decrease the cost, and avoid making the twice packing.

Equipment technical parameters: 1.Application It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc. 2.Main performance and functional characteristics 1.Equipped with safety protection, comply with firm’s safety management requirements. 2.Use intelligent temperature controller to have accurate temperature, which ensures the artistic and neat seal. 3.Use PLC Servo System and pneumatic control system and super touch screen to compose the drive control center which maximize the whole machine’s control precision ,reliability and intelligentized level. 4.Touch screen can store the technical parameters of various kinds of products ,it is unnecessary to reset while products changing. 5.With error indicating system , which help to handle the trouble immediately. 6.Make pillow bags and hanging bags in terms of customers’ different requirements.

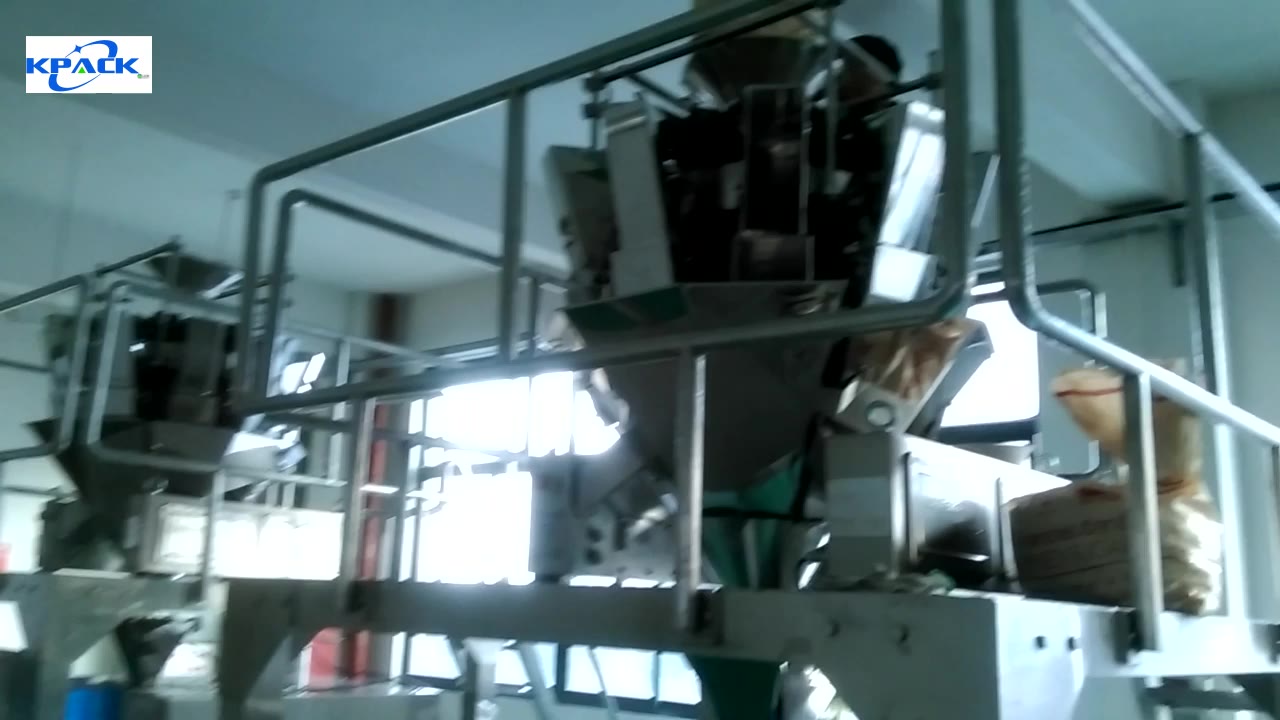

Equipment technical parameters: 1.This set of automatic weighing and packing system ① Vibration feeding type Z material lifting equipment ② 4 weighing equipment ③ Automatic vertical packaging equipment ④ Working platform ⑤ Product conveying equipment 2.Feature: The system will finish all the process automatically: feeding, dosing, filling, sealing, date printing and finish product conveying. It has the advantages of high accurate weighting, high efficiency without broken material. 3. Range: Suitable for fine particle material, washing powder, water wizard, seasoning powder packaging

Equipment technical parameters: 1.This set of automatic weighing and packing system (1).Vibration feeding type Z material lifting equipment (2).Computer combination weighing equipment (3).Automatic vertical packaging equipment (4).Working platform (5).Product conveying equipment 2.Feature: The system will finish all the process automatically: feeding, dosing, filling, sealing, date printing and finish product conveying. It has the advantages of high accurate weighting, high efficiency without broken material. 3.Applicable scope: The machine is suit to pack anomalous solid and the granule material, such as: puff snack food, potato chips, crispy rice, jelly, candy, apple chips, dumpling, small cookie, dry fruit, melon seeds, roasted seeds and nuts, medical material, deep-frozen food, etc.
